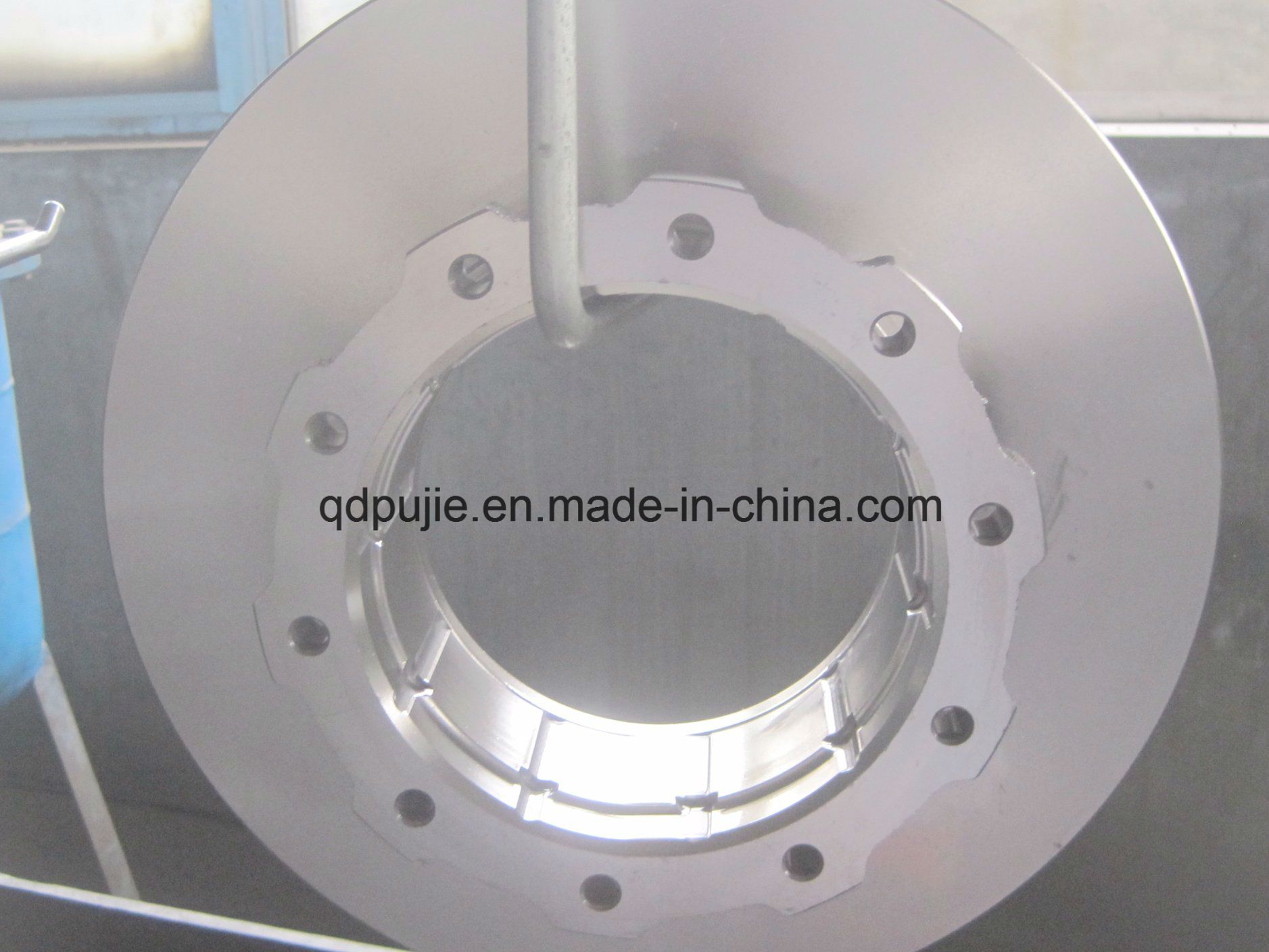

1. Description of BENZ brake disc : 3564211012 3564210312 3564211212

CHEMICAL COMPOSITION (mass %)
Mn	Ni	Cr	Mo	Cu	S	P	Sn	Ti	V
0.4	/	0.15	/	0.3	/	/	/	/	/
0.8	0.1	0.35	0.25	0.6	0.15	0.1	0.15	0.05	0.05
MICROSTRUCTURE
MATRIX	Type of matrix					Fine Lamellar
	Permissible limit					5% Max, well distributed
	Ledebutite					Not permissible
GRAPHITE (To UNI EN ISO 945)	Shape					∣
	Distribution					A: 70% MIN
						D·E:<4% Disporsed
						B: Resto/Remainder
	Size					3- 4 -5 : 70% MIN
						2: Traces
						6:≤15%
Cementite and free carbides	Traces uo pt 1% MAX permissible
MECHANICAL PROPERTIES OF CASTING
HARDNESS (HBW)	On machined braking surfaces					170~210
	On braking surfaces as-cast (0.5 mm below surface)					230MAX
TENSILE STRENGTH(Rm) (N/m²)	On braking surface					170 MIN
	On mounting flange
WEDGE INDENTATION STRENGTH (Rmk)(N/m²)	On braking surface					125 MIN
Young's MODULUS (E) (N/m²)	/					95
PHYSICAL PROPERITIES (Indicative values)
Density (volumic mass)						7.1 kg/dm³
Coefficient of thermal exoansion at 20 degree						9.10 1/K
Thermal conductivity at 100 degree						50 W/Mk

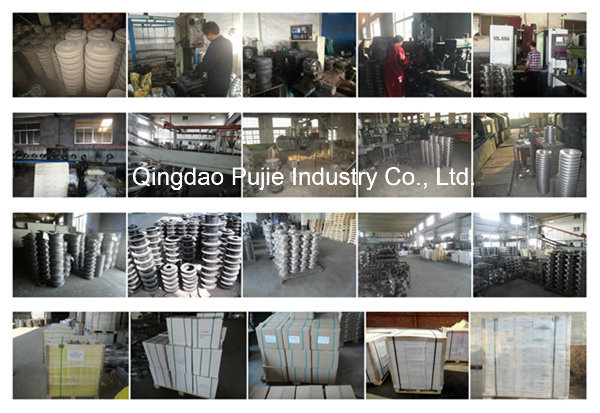

2. Factory Pictures :

3. About us :

One you need , PUJIE all support ,stablished in 1998 , Pujie Industry Co. Ltd is one the of fast-growing company in the heavy duty brake discs and drums . Our factory is lacated in Yantai , covering 50,000 square meters .

We have experienced workers and professional R&D department .We also have the sense of innovation and scientific development .

All our discs and drums are certified by TS16949&ISO9001. The latest production and inspection machines for commercial brake discs and drums are imported from Germany to make sure the quality .

Our Commitment is to keep our clients satisfied by providing high quality products, which insure safety, durability and affordability.

Prod Model:	3564211012, 3564210312, 3564211212
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
O.E. No.:	3564211012, 3564210312, 3564211212
Height:	135mm
PCD:	238mm
No. Of Holes:	10
Centering Diameter:	438 mm
CB:	195mm
Fitting Position:	Front&Rear
Thickness:	41mm
Type:	Brake Discs
Material:	Iron
Position:	Front
Certification:	ECE
Drum Brakes Classification:	Brake Disc
