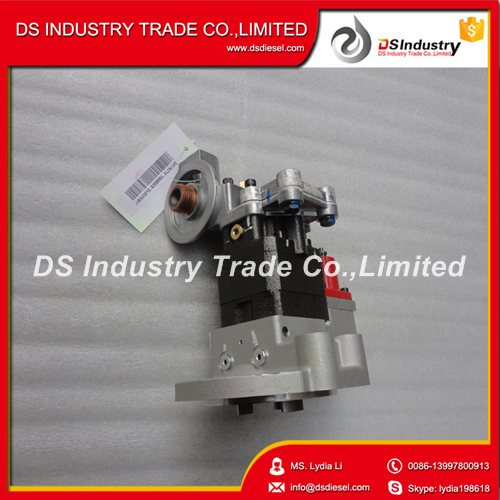

3090942 3417677 3417674 Fuel Pump for Cummins Engine ISM11 L10
| Price: |
US $ 270-290/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
3090942 3417677 3417674 Fuel Pump for cummins engine ISM11 L10 Instruction and ApplicationPart number: 3060492 3075340 3041800 3417677 3417674 Type: Fuel PumpFit for Cummins Engine ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876
L10 CELECT, L10 GAS, L10 MECHANICAL This is new & original parts of high quality and it can work well for you. Sideline Products | | FP2839 | Fuel Pump | | |
| | | | | Fuel Pump |
| | | | | Fuel Pump Type: Celect |
| | | | | Drive: All Compressors |
| | | | | Except 30 CFM |
| | | | | Fuel Filter Location: Remote |
| | | | | From Fuel Pump |
| | | | | Fuel Temp Sensor Provision: |
| | | | | No |
| | | | | Fuel Shutoff Valve Volts: 12 |
| | | | | Fuel Valve Terminal |
| | | | | Provision: Single/Internal |
| | | | | Ground |
| | | | | Includes Fuel Restriction |
| | | | | Compuchek Fitting |
| | | | | Gear Pump Bypass Fitting |
| | | | | Position: 90 Degrees to Rear |
| | | | | Face of Gear Pump |
| | | | | |
| | BM76340 | Fuel Pump Damper | 1 | |
| 1 | 100099 | Rectangular Ring Seal | 1 | |
| 2 | 139988 | Rectangular Ring Seal | 1 | |
| 3 | 153336 | Fuel Pump Damper Body | 1 | |
| 4 | 153338 | Fuel Pump Damper Cover | 1 | |
| 5 | 160514 | Plain Washer | 1 | 1 11/16 in. |
| 6 | 202897 | Fuel Pump Damper Diaphragm | 1 | |
| 7 | 3017051 | Captive Washer Cap Screw | 2 | 1/4 - 20 X 1 1/8 in. |
| 8 | 70704 | Plain Washer | 2 | 1/4 in. |
| 9 | 151900 | Rectangular Ring Seal | 1 | |
| 10 | 153346 | Socket Head Cap Screw | 2 | 1/4 - 20 X 4 in. |
| 11 | 181466 | Lock Washer | 4 | 1/4 in. |
| | 3090942 | Fuel Pump | 1 | |
| 12 | S 2286 | Drive Screw | 2 | 3/16 in. |
| 13 | 70700 | Compression Spring | 1 | |
| 14 | 100129 | Socket Head Cap Screw | 4 | 1/4 - 20 x 3 inch |
| 15 | 105375 | Nameplate | 1 | |
| 16 | 129768 | Valve Spring | 1 | |
| 17 | 129839 | Shut-Off Valve Shield | 1 | |
| 18 | 129888 | Rectangular Ring Seal | 2 | |
| 19 | 146483 | Filter Screen | 1 | |
| 20 | 196057 | Valve Disc | 1 | |
| 21 | 3014575 | Fuel Pump Filter Cap | 1 | |
| 22 | 3021123 | O-Ring Seal | 1 | |
| 23 | 3033742 | Threaded Plug | 1 | |
| 24 | 3034412 | O-Ring Seal | 1 | |
| 25 | 3034451 | Actuator Housing | 1 | |
| 26 | 3095355 | Jaw Coupling Hub | 1 | |
| 27 | 3042619 | Coupling Nipple | 1 | |
| 28 | 3037537 | O-Ring Seal | 1 | |
| 29 | 3054608 | Solenoid | 1 | |
| 30 | 3056009 | Actuator Disc | 1 | |
| 31 | 3056416 | Threaded Plug | 4 | |
| 32 | 3056415 | O-Ring Seal | 1 | |
| 33 | 3065944 | Captive Washer Cap Screw | 4 | #10 - 24 X 1 Inch. |
| 34 | 3068768 | Retaining Ring | 1 | |
| | 3095634 | Gear Fuel Pump | 1 | |
| 11 | 181466 | Lock Washer | 2 | 1/4 in. |
| 35 | 64816 A | Pin Dowel | 2 | |
| 36 | 110855 | Fuel Pump Gasket | 1 | |
| | 3019617 | Gear And Shaft | 1 | |
| 37 | 119364 | Fuel Pumping Gear | 1 | |
| 38 | 175865 | Fuel Pump Shaft | 1 | |
| 39 | 3033719 | Ring Dowel | 1 | |
| 40 | 3033740 | Check Valve | 1 | |
| 41 | 3034412 | O-Ring Seal | 1 | |
| 42 | 3085614 | Compression Spring | 1 | |
| 43 | 3085613 | Pressure Regulator Plunger | 1 | |
| 44 | 3085615 | Retaining Ring | 1 | |
| | 3068889 | Gear Fuel Pump | 1 | |
| 45 | 3033714 | Fuel Pump Gear Housing | 1 | |
| 46 | 3033724 | Bushing | 4 | |
| 47 | 3068770 | Fuel Pump Gear Cover | 1 | |
| | 3095635 | Gear Shaft | 1 | |
| 37 | 119364 | Fuel Pumping Gear | 1 | |
| 48 | 3095356 | Fuel Pump Drive Shaft | 1 | |
| | 3804657 | | 1 | |
| 49 | 128807 | Retaining Ring | 1 | |
| 50 | 3096077 | Fuel Pump Gasket | 1 | |
| 51 | 3074317 | Seal Spacer | 1 | |
| 52 | 3074316 | Seal Spacer | 1 | |
| 53 | 3090996 | Fuel Pump Support | 1 | |
| | 3803477 | Seal Kit | 1 | |
| 54 | 3084713 | Oil Seal | 1 | Sold In Higher Level Assy/Kit |
| 55 | 3071643 | Oil Seal | 1 | |
| 56 | 3037536 | Threaded Plug | 1 | 9/16 - 18 UNF |
| 57 | 3037537 | O-Ring Seal | 1 | |
Other parts
Customer Service International Buyers Please NoteImport duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.Please check with your country's customs office to determine what these additional costs will be prior to bidding and buying. International Shipping (From CN)Expedited Express Shipping(SF/DHL/TNT/EMS/FedEx/UPS):to USA 5-8 Workdays,to other countries 7-10 workdaysEconomy Shipping(e-Packet/China Post/Airmail):to USA 7-15 Workdays; United Kingdom, Australia 23-35 Workdays; other countries 23-50 workdaysThis is normal condition, but sometimes the transport may be beyond our control and take longer time.Thanks for your understanding and cooperation Exception To Shipping AddressDue to the carrier, We usually aren't available to ship to PO BOX and APO/FPO address. If there is only this address,please provide us with your mobile or phone number. More information about address better. We will confirm and give you reply as soon as possible. Thanks Return Policy and Warranty After receipt of the goods, please check whether there is damage, if any damage, please keep the evidence to let us know. After consultation we will be in the next replenishment orders for you.At the same time, we will provide 3 months to one year warranty service for different parts item, within the correct operation. Feedback and CommentsWe always do our best to provide products of high quality at a favor price and creat a relaxed and happy shopping experience.If you are satisfied with our service,please spare several seconds to give us a positive feedback.If there is something can't make you satisfied,please let us know,we will do our best to make up and improve it next time.
| Prod Model: |
3060492 3075340 3041800 3417677 3417674 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
Fuel Pump |
| P/N: |
3060492 3075340 3041800 3417677 3417674 |
| MOQ: |
1 PC |
| Series: |
M11 |
| Condition: |
New & Genuine |
| Delivery Time: |
5 to 15 Days |
| Applications: |
Truck & Construction Machinery |
| Sample Order: |
Acceptable |
| Warranty: |
6 Months |
| Payment: |
T/T, Western Union, Alipay |
| Fuel: |
Diesel |
| Body Material: |
Alloy |
| Component: |
Fuel Injection Device |
| Certification: |
CCC |
| Stroke: |
6 Stroke |
| Cylinder: |
Multi-cylinder |
| Application: |
Cummins |
