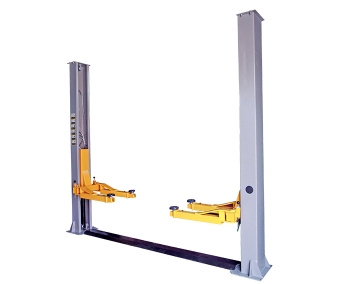

3.5 T Two Post Hydraulic Car Lift / Garage Equipment / Auto Lift
Price: |
US $ 670-850/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
MT-TP35A |
Lifting Height: |
1800mm |
Machine Weight: |
About 550 Kg |
Electric Supply: |
220V /380V/110V |
Min Height: |
125mm |
Lifting Time: |
40s-50s |
Air Pressure: |
6-8bar |
Motor Power: |
2.2kw |
Overall Height: |
2830mm |
Overall Width: |
3340mm |
Width Between: |
2850mm |
Type: |
Double Cylinder Hydraulic Lift |
Lifting Capacity: |
3.5T |
Design: |
Two Post |
Product Description

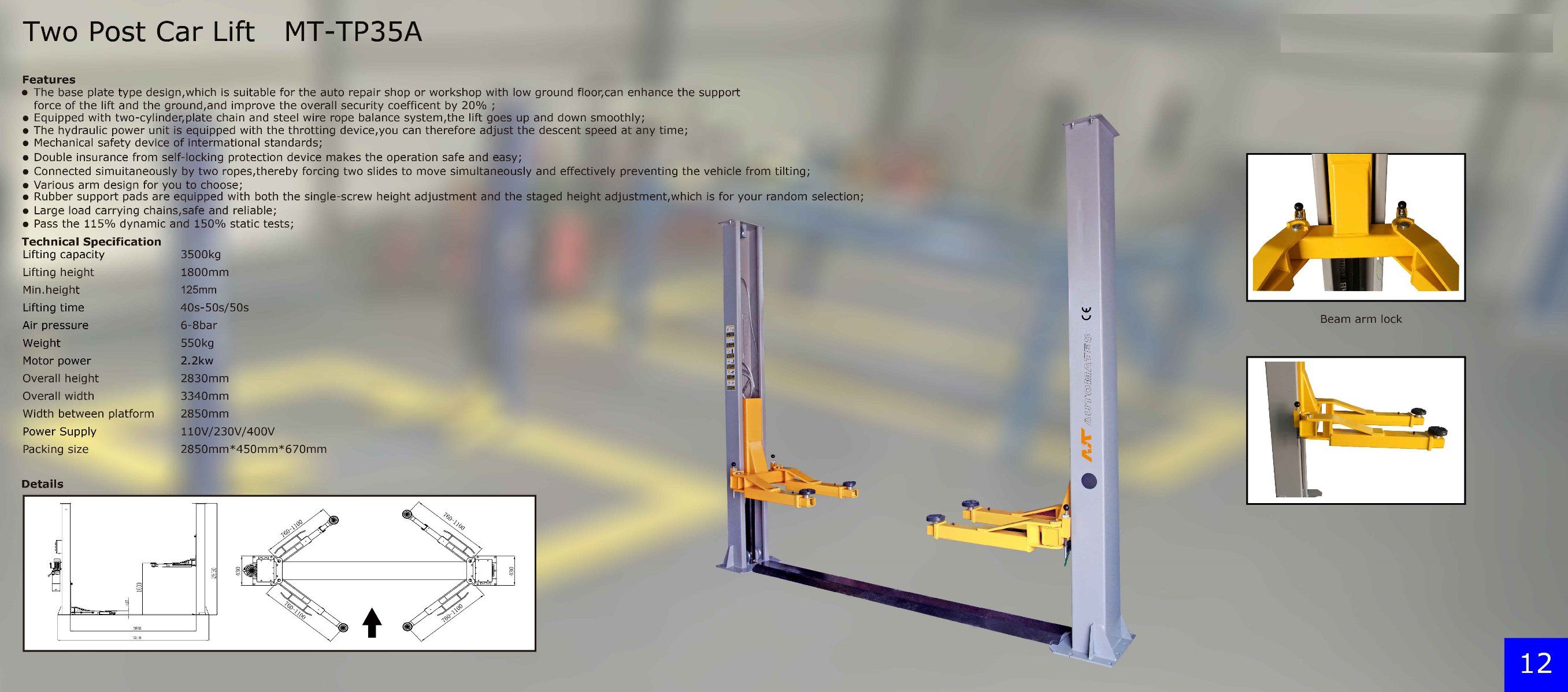

Features:1.The base plate type design,which is suitable for the auto repair shop or workshop with low ground floor,can enhance the support force of the lift and the ground,and improve the overall security coefficent by 20%; 2.Equipped with two-cylinder,plate chain and steel wire rope balance system,the lift goes up and down smoothly; 3.The hydraulic power unit is equipped with the throtting device,you can therefore adjust the descent speed at any time; 4.Mechanical safety device of intermational standards; 5.Double insurance from self-locking protection device makes the operation safe and easy; 6.Connected simuitaneously by two ropes,thereby forcing two slides to move simultaneously and effectively preventing the vehicle from tilting; 7.Various arm design for you to choose; 8.Rubber support pads are equipped with both the single-screw height adjustment and the staged height adjustment,which is for your random selection; 9.Large load carrying chains,safe and reliable; 10.Pass the 115% dynamic and 150% static tests; |
Specification:Lifting capacity | 3500kg |
Lifting time | 40-50s/50s |
Lifting height | 1800mm |
Air pressure | 6-8bar |
Minimum height | 125mm |
Motor power | 2.2kw |
Overall width/height | 3340mm/2830mm |
Power Supply | 110V/230V/400V |
Weight | 550kg |
Packing size | 2850mm*450mm*670mm |
Width between columns | 2850mm |
