2wheel/3wheel Motorcycle Test Line

Name: 2wheel/3wheel Motorcycle Test Line
Brand: ibuyautoparts.com
SKU: 814448035
Availability: InStock
Rating: 4.4 (88 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

2pcs Wheel or 3pcs wheel/4wheel motorcycle test line

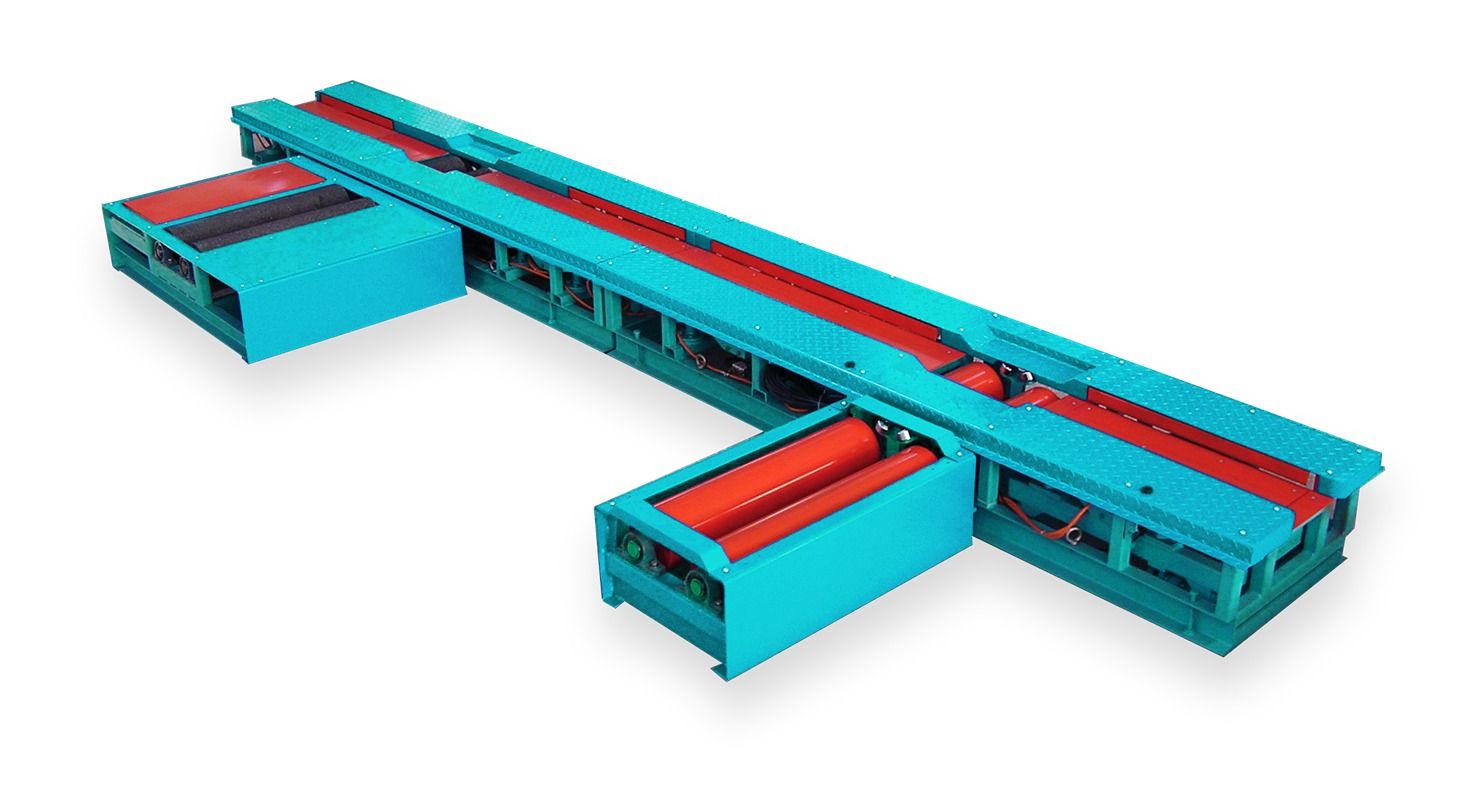

KMFH-350 Tester is designed specially to inspect the Brake performance and Axle load of Motorcycle. Combined with the KMDW-350 Wheel Locator, it inspects as well the Speedometer and Wheel Alignment data of motorcycle. It is advanced equipment for Motorcycle safely inspection center and for the large use of Motorcycle repair industry.

Description of product
>Selection of Automatic or Semi-automatic function mode
>Special mechanic structure suitable for both two-wheel and three-wheel motorcycle
>All-in-one computer control station for multifunction menu
>Optimal control system with great reliability and durability
>High-precision sensor ensures the exactitude result

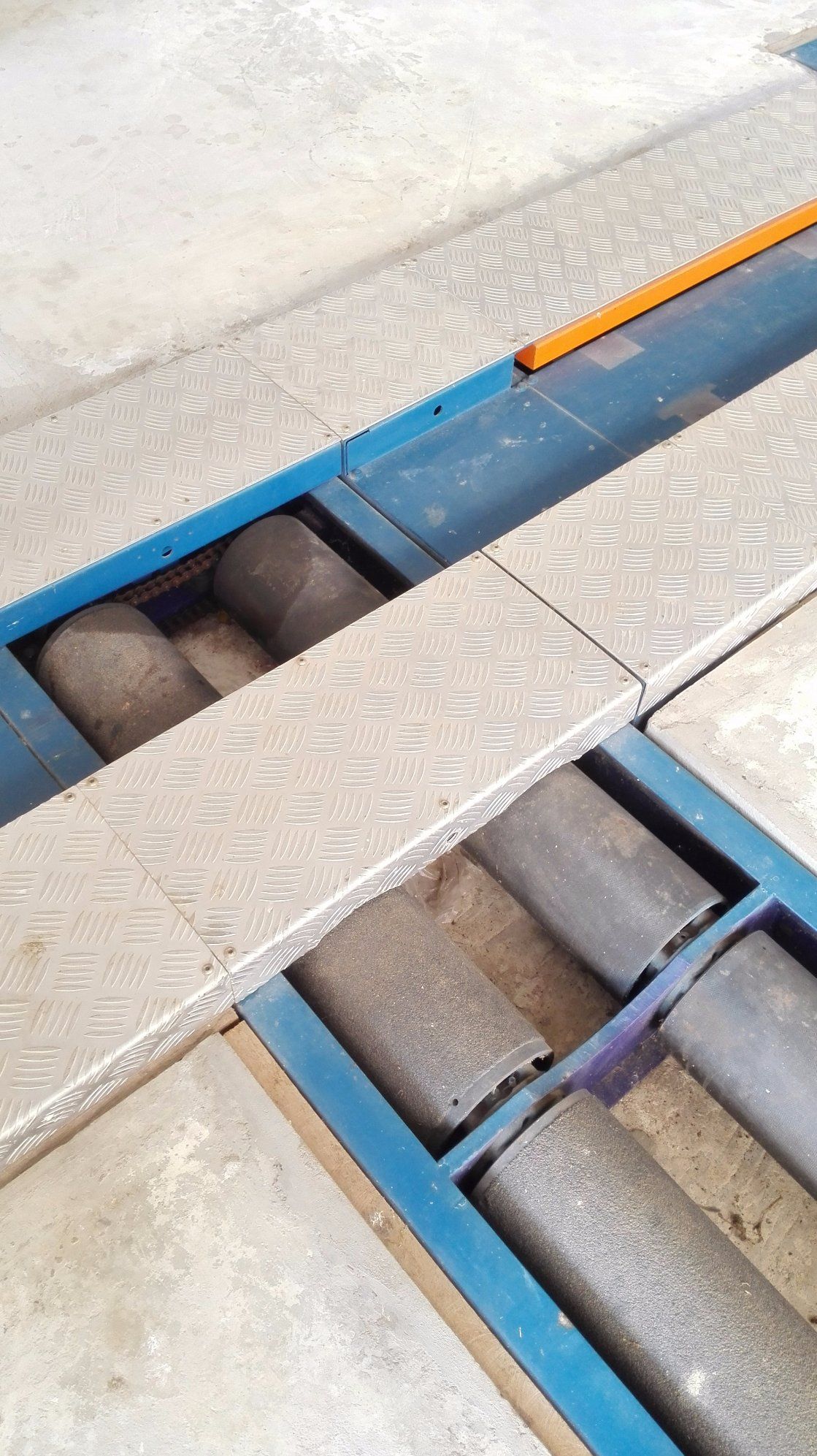

>Rollers with Corundum fusion technique for high adhesion

Technical Parameter:

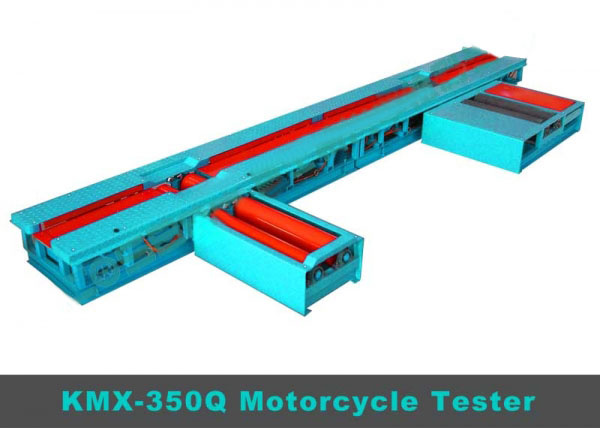

Model	KMX-350 (2 Wheel) PN:5801001	KMX-350Q (All In One) PN:5802001
Max. Wheel Weight (kg)	350	350
Measuring Range (kg)	0-350	0-350
Brake Force (N)	0-3000	0-3000
Measurement Speed (km/h)	0-80	0-80
Sideslip Measurement (mm)	15	15
Brake Motor Power (kW)	1.1	1.1x2
Speed Motor Power (kW)	4	4
Motor Type	Variable speed	Variable speed
Equipment Dimensions (mm)	6170x820x390	6170x1800x390
Equipment Weight (kg)	1090	1790
Air Supply (MPa)	0.5-0.6	0.5-0.6
Power Supply	AC 380V, 50Hz, ground	AC 380V, 50Hz, ground

Prod Model:	KMX
Max. Wheel Weight (Kg):	350kg /350kg
Measuring Range (Kg):	0-350kg/0-350kg
Brake Force:	0-3000n
Measurement Speed (Km/H):	0-80km/H,0-80km/H
Sideslip Measurement (mm):	15mm/15mm
Brake Motor Power:	1.1kw/1.1kw*2PCS
Speed Motor Power (Kw):	4kw/4kw
Motor Type:	Variable Speed
Equipment Dimension:	6170X820X390mm
Air Supply:	5-6bar
Certification:	CE
Update Method:	by Email
Testing Equipment Type:	Test Line

Guangzhou Baohua Auto Maintenance Equipment Trade Co., Ltd is founded in 1998 and located in Guangzhou city. We have a professional research technical team in automobile maintenance Equipment.

We have more than 1000 kinds of car equipment and 2000 kinds of accessories. We are Manufacturer of car lift, spray booth, wheel alignment, A/C refrigerant recycle and fill machine, Nitrogen generator, Injector tester, Pneumatic sander with extraction system, automatic Car/Bus washing machine. What's more, we can provide our clients with a whole set of Garage Equipment, sheet metal Equipment and Tire shop repair Equipment.

We insists on the principle of "quality first and service first, we pay great attention to our reputation. So our products are sold well at home and overseas because of good quality product and excellent service. We will establish a mutual benefit business relationship. The most important is that we can offer our customers one-stop service.
