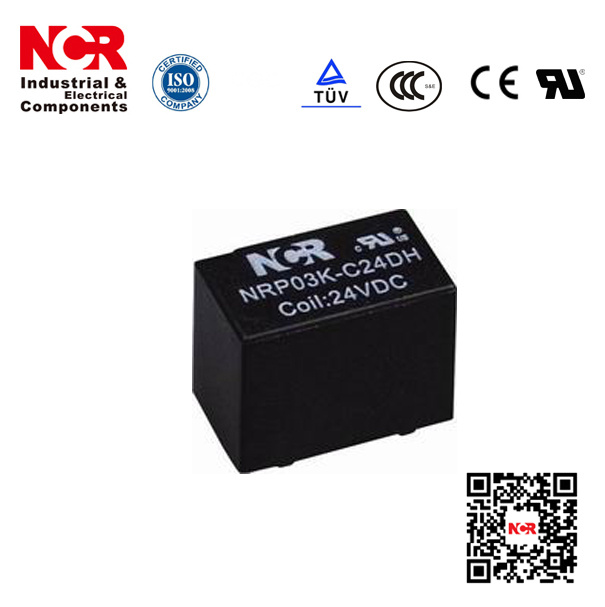

0.2W 3VDC Miniature PCB Relay (NRP03K)

0.2W 3VDC Miniature PCB Relay (NRP03K)
Price: US $ 0.28-0.3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 60/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
0.2W 3VDC Miniature PCB Relay (NRP03K)


General:

Relay is a kind of automatic switching component with isolation function, which is widely used in
remote control, remote measuring, telecom, automatic control, integration of machinery and
electrification, electric and electronic equipments. It's one of the most important controlling
components.

Generally, relays have the inductive organ (input part) that can reflect the input value (such as
current, voltage, power, impedance, frequency, temperature, pressure, speed, light etc.); have
the executive organ (output part) that has the capability of switching the controlled circuit "on" or
"off"; between the input and output parts, there is the medium organ (actuator) that can make
input value coupling-isolation and drive the output part.


As a kind of controlling component, generally, relay mainly has the following functions
1) To enlarge the range of control. E.g., when the controlling signal of a multi-contacts relay
reaches a certain value, according to the different forms of the contacts, it can synchronously
change over, close or open several circuits.
2) Enlargement. E.g., sensitive relays and medium relays can control a high-power circuit with
minute controlling power.
3) To integrate signals. E.g., when several controlling signals are put into a multi-winding relay in
the stated form, the relay can realize the expectant controlling function by analyzing the different
signals.
4) Automatization, remote control and monitoring. E.g., in automatic equipments, the relays and
other electronic components can constitute program-controlled circuit, realizing the automatic
operation

Applications:

Prepayment energy meter
Smart meter
Concentrated meter reading system
Street lamp control system
Compound switch, Combination switch
Automatic control device/ system
AMR system
Elevator control

Why NCR?
1. We Are an electronics components manufacturer, researcher, developer and exporter.
2. We have fourteen years experience of manufacturing Relays and other electronic components.
3. Based on ISO 9001 & ISO14000 quality control system as our production standard;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Department.
6. Perfect testing system ensure each product is qualified.
7. Want to know more of us? Waiting for your inquiry.
ModelNRP03K
Dimension(mm)12.5×7.5×10
Contact Arrangement1C
Contact Coapacity  Max2A
Rated1A
Min.1mA       5VDC
MAX Switching Voltage60VDC/250VAC
MAX Switching power48W/240VAC
Nominal Voltage3~24VDC
Pull-in Voltage≤75%
Release Voltage≥10%
Operate/Release Time≤4ms/3ms
Coil Power0.15W\0.20W
Contact Resistance≤100mΩ
Insulation Resistance≥100MΩ
Dielectric  Strength  Vr.m.sBetween Contacts400VAC
Between Coil&Contact1000VAC
Ambient Temp.-30~+70
Service Life   Electrical1×10 5
Mechanical1×10 7

Prod Model: NRP03K
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension(mm): 12.5X7.5X10
Contact Arrangement: 1c
Max Switching Voltage: 60VDC/120VAC
Max Switching Power: 48W/240va
Coil Power: 0.15W/0.2W
Terminal Type: P.C.B
Contact Point Type: Z Type
Contact Point Material: AgSnO2
Withstand Voltage Of Insulation Level: withstand Voltage between Coil
Certification: UL/UR
Type: Electric Parameter Relay
Pin Number: Six
EMC: PCB Relay
Input Parameter: 3VDC
Application: PCB Relay
NCR Industrial:

A) P. C. B Relays for household appliance industry

B) Latching Relays/Shunts/C. T. For Energy meter industry

C) Eletricity Measuring Meters

With professional manufacturing and reliable design concept, NCR is supplying superior Latching Relay, Shunt and Current Transformer to worldwide meter producers.

With decades of manufacturing experience, we are now enjoying a high reputation in the metering field worldwide. Our product range include Latching Relay and Shunt/Current Transformer used for 60-200A single & three phase energy meter. We have over 10000sqm production facilities, several automatic and semi-automatic production lines. With strong R&D capability, we are offering our clients one-step customized solutions and service.

Based on ISO9000 quality standard, we have set up strict IQC, IPQC and FQC system in our manufacturing, to ensure quality meeting IEC62055-31 standard and customer's requirements.

We'll always keep the spirit "offering the best products and outstanding service", to go along with all our clients together. By continuous steps, NCR is efforting to offer better products and more professional solutions to our users.

"Nice, Content, Reliable. It's NCR. "
