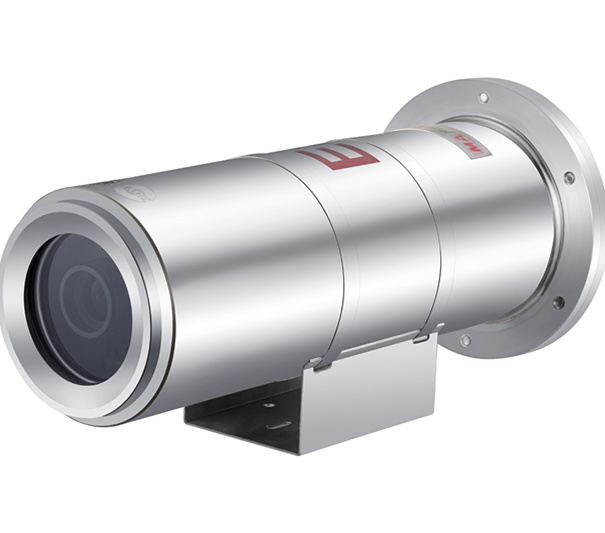

2MP ex-proof&anti-corrosion cctv camera for mining
Product features:
- The highest grade ex-proof certificates ,suitable for multi-hazardous zones.
- 2MP sony 1/3 CMOS sensor ,maximum resolution can be up to 1920X1080 ,clear and smooth images.
- Adopt andvanced video compressed technology ,high compression ratio ,flexible handling , low code rate .
- Adopt 3MP high definition IR len ,automatical IRIS ,which is easy to monitor long distance object.
- ICR filter auto switch ,auto color into black&white ,which make the day&night monitoring come true.
- Deep private protocols ,access to large scale security platform .
- Support dual stream and mobile monitoring .
- Support 3D digital noise reduction ,support digital wide dynamic .
- Support backlight compensation ,auto electric shutter function,auto IRIS ,which can adapt different monitoring environment.
- Window glass use unique ex-proof glass ,high luminos rate ,which completely eliminate infrared lamp halo.
- Window glass surface adopt nanotechnology ,non-stick water ,non-stick oil ,excluding dust.
- Low power consumption ,low power dissipation ,internal body is flowing type cooling design ,which can work constantly for a long time .
- Optional semi-conductor temperature controllable components,which realise auto heating and cooling function.
- Multi-power supply mode choices,AC220V/DC12V(other power supply can be customized )
- 304 stainless steel material ,suitable for strong corrosive environment .
- Ex-proof .waterproof,dustproof design ,sutitable for indoor and outdoor installation ,all day use .
Application environment :
Used for 1 type gas group ( typical gas is CH4 ,mine gas and so on ),such as the hazardous zones with mine gas ,coal-dust explosion under coal mine . The housing adopt 304 stainless steel ,the window glass adopt unique stalinite,which can be used among -40°C - 60°C for long time .The camera has the characteristics of small volume ,light weight ,explosion proof ,waterproof ,dustproof ,anti-shake,which can get good effect in low light environment and is the important parts in coal monitoring system .
Technical parameters:
Modle | |
model number | HB-M1 (mining series ) |
EX-sign | Ex d IIC T6 Gb /Ex tD A21 IP68 T80°C |
Protection grade | IP68 |
Camera | |
imiging device | 2MP sony 1/3 CMOS |
the lowest illumination | color :0.1 Lux*F1.2 Black&white:0.01 Lux*F1.2 |
Day&night shifting | IR-CUT dual filter |
digital noise reduction | 3D |
foca length | 2.8-12mm(manual focusing ) |
IRIS control | auto |
auto IRIS | DC drive |
motion detection | |
compressed standard | |
video compressed standard | H.264/MJPEG |
H.264 code type | Baseline Profile /Main Profile |
compressed output code rate | 32kbps-8Mbps |
Image | |
maximum size | 1920x1080 |
frame rate | 2MP or less 25 frames ,support 1-25 frame /s adjustable |
image output | main stream :1920x1080,1600x1200,1280x1024 and so on |
image set | corridor mode ,saturability,brightness,sharpness,contrast ratio(can be set by the client or IE) |
Network | |
interface protocol | ONVIF ,PSIA,CGI ,ISAPI,GB28181 |
support protocols | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and others |
audio interface | optional |
alarm interface | optional |
General specification | |
temperature range | -40°C-60°C |
relative humidity | less than 95%(+25°C) |
atmospherical pressure | 80kpa -106kpa |
constant temperature system | optional |
power supply | DC12V /AC220V(optional) |
power | ≤18w |
material | 304 stainless steel (anti-corrosion) |
inlet hole specification | 2 pieces 3/4G inlet holes |
way to install | electrical PTZ ,cardon ,fixed support ,upright |
weight | ≤8.0kg |
