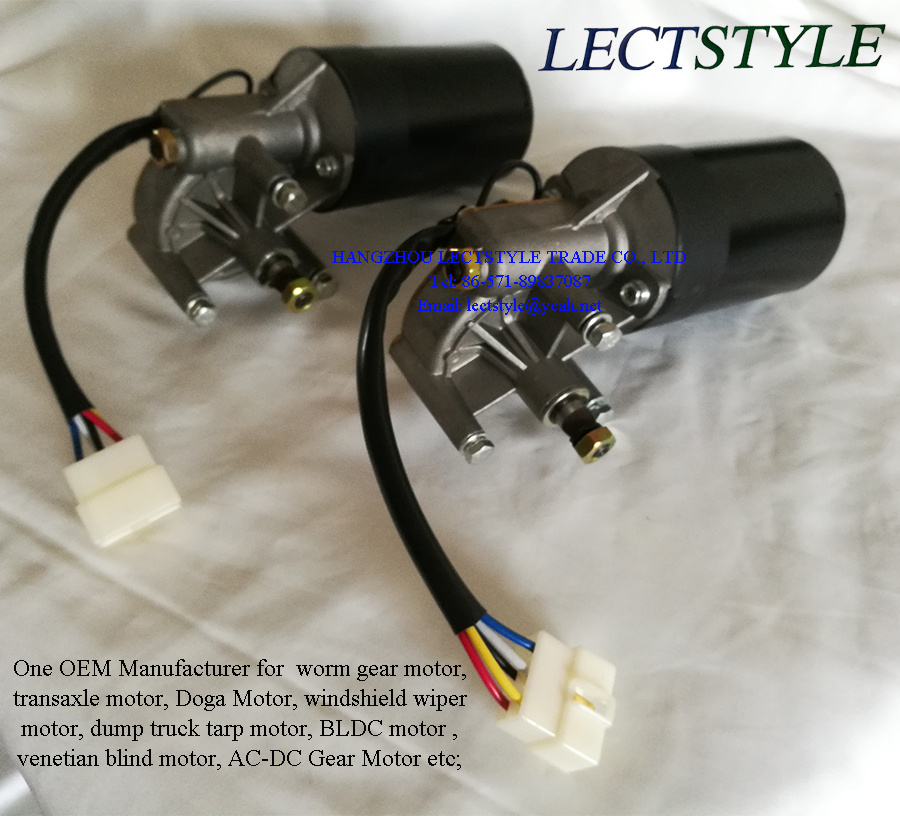

24V 80W 27rpm Voleo DC Electrical Windshield Wiper Gear Motor on Patient Lift &Wheel Chair Lift
Price: |
US $ 25.99-38.99/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
500/Piece |
Pay Type: |
T/T |
We are one OEM Manufacturer for various worm-gear motors, electric broadcast spreader motor, windshield wiper motor, DOGA motor, voleo motor, bosch motor, vehicles-window regulator motor, sweeper motor, wheelchair motor, electric transaxle motor, dump truck tarp motor, BLDC Motor, electric trailer motor, electric golf trolley motor etc
Note: these parameters are done according to different customer's requirement
1. Motor type: Permanent magnet DC
2. Rated speed: 1500rpm-5000rpm
3. Protection: IP44, IP55, IP66
4. Voltage: 12V, 24V
5.Gear Ratio: 30:1, 50:1, 60:1, 75:1 etc
6.Output speed: 15rpm, 35rpm-45rpm, 40rpm-45rpm, 70-80rpm, 100rpm-120rpm, 160rpm-180rpm
7. Output power: 120W, 180W, 250W, 320W, 380W, 500W, 750W, 1000W
8. Gearbox: worm and wheel
9. Insulation: Class F
10. Efficiency: 65%
For example, LST1631/1631 24V/12V 60W Loaders Front Windscreen DC Wiper Motor
Honda, Hyundai, ISUZU, KIA, MAZDA, MITSUBISHI, NISSAN, SUZUKI, TOYOTA, VOLVO, Chevrolet Front windshield wiper motor etc
Features:
1. Swing output;
2. Compact, series design;
3. Convenient installation, small space occupation;
4. Multi functional selectivity combination (Reset, with switch, single or double speed)
Application:
1. Construction machinery cab.
2. Motorcycle windshield.
3. Agricaltural vehicles.
4. Rear window of all kinds of vehicle.

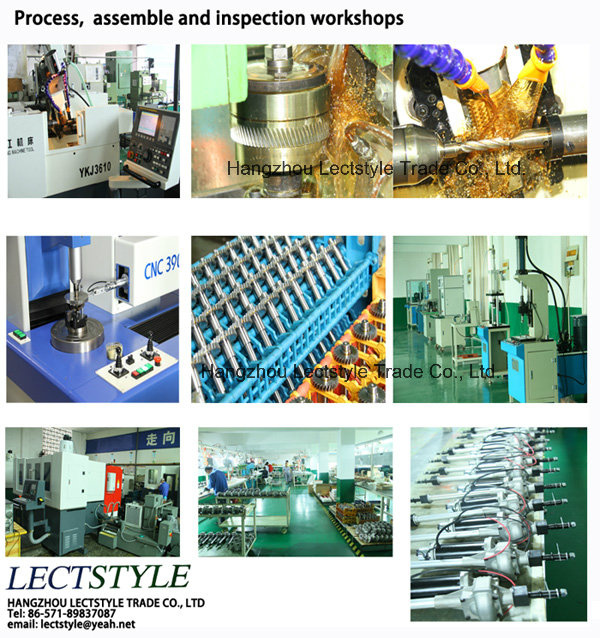

Our production workshop:

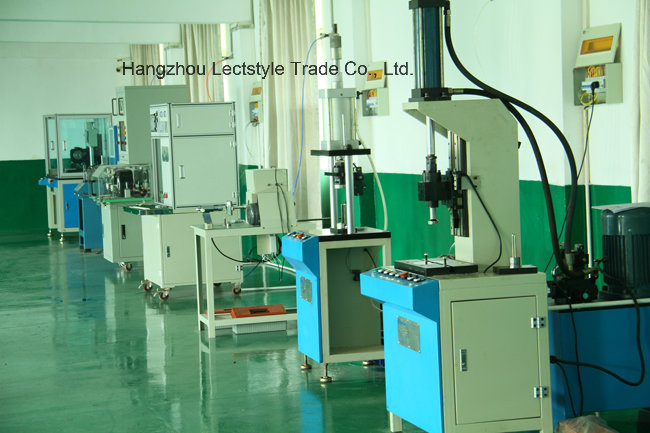

Our inspection workshop:

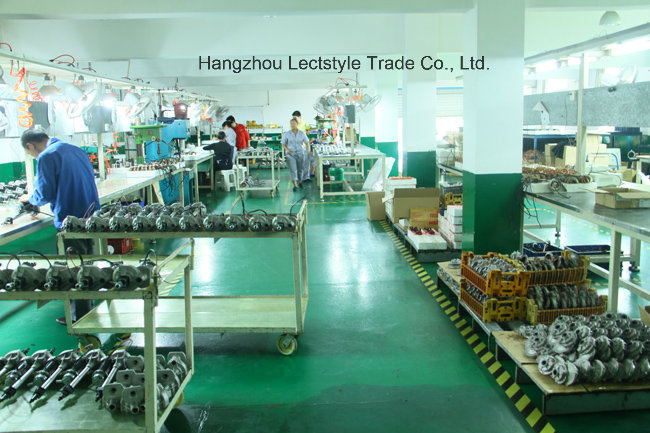

Our assembled workshop:

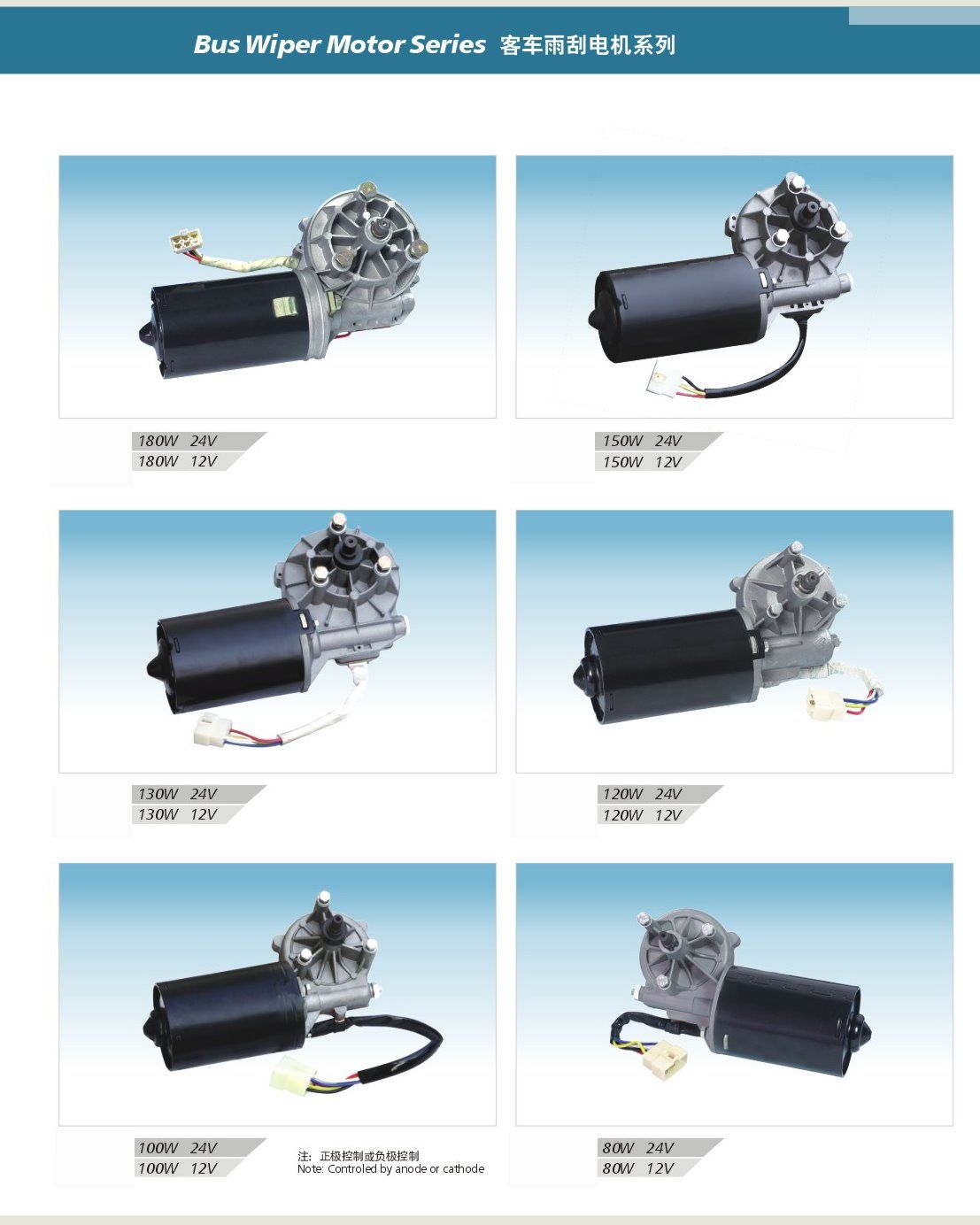

Our products:
Our package way:
Raw material of wiper motor: copper, iron, aluminum alloy, plastic, etc.
Working temperature: -40°c - 65 °c
We follow QC/T413-2002 Basic Technical Requirements of Automotive Electrical Equipments, QC/T29090-1992 Automotive Wiper Motor Technology Requirements.
Our Services
Free samples are for serious customer.
Your OEM sample and ODM design are welcomed.
Please let us know in time if there is any problems with our products, we will solve the problem at the first time. Technical parameters: |
Model | | LST1631 | LSD1631 |
Rating Voltage | UN | 12V | 24V |
Rating Power | PN | 60W |
No Load Current | IN | 6.5A/12A |
No Load Speed | nN | 40/50±5RPM |
Load Current | ID | 1.5/1.8A |
Load Speed | nD | 36/53±5RPM |
Wiping Angle | a° | 45,50,55,58,60,65,70,75,80,85,90,95,100, |
105,110,115,120,125,000,000 |
Protection Circuit | EMC or overload protection |
Protection Class | | IP33 |
Weight | W | 1.767kg |
Wiper motor connector: |
Connector type | Red wire | Black wire | Green wire | Yellow wire |
4 holes 4 wires | Positive | Negative | Low speed | Reset |
Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe |
Part: |
Wiper Motor |
Material: |
Aluminum Alloy |
Range: |
Double Side |
Type: |
Traditional Batch Type |
Bone: |
With Bone |
Driving Type: |
Electrical |
Size: |
18" |
Application: |
Coach |
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).
Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
