Name: 24V 70A Alternator for Delco Motor Lester 8003 10459026
Brand: ibuyautoparts.com
SKU: 796136285
Availability: InStock
Rating: 4.7 (150 reviews)

Price:	US $ 80-100/Piece
Min Order:	20/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	8003
Pulley Type:	Not Fitted
Model No.:	Lester 8003 1117900
Rotation:	Cw
Regulator:	IR
Fan Type:	Ef
Current Level:	7(',70～79A)
Voltage:	24V
Type:	Alternator

Product Description

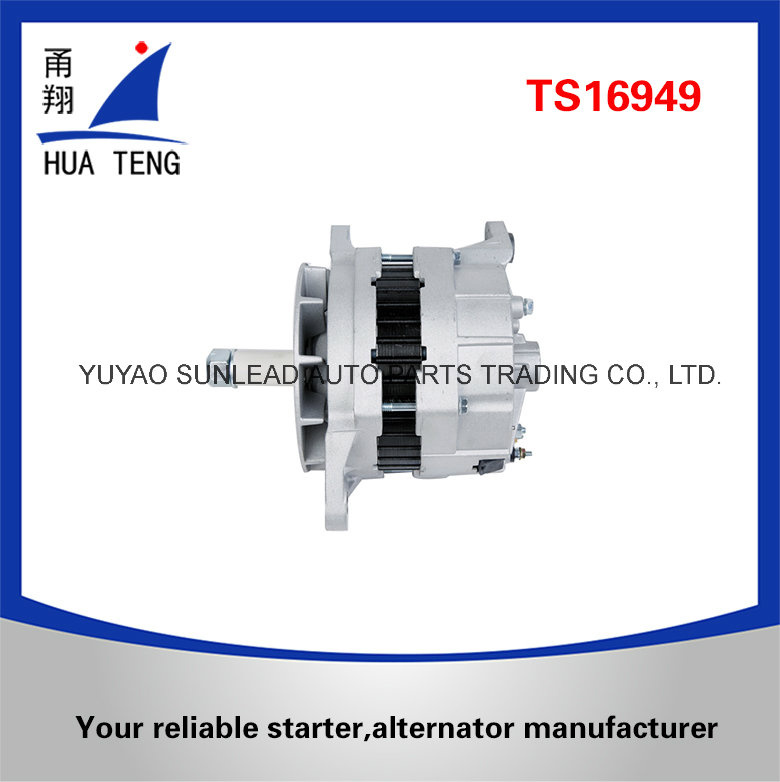

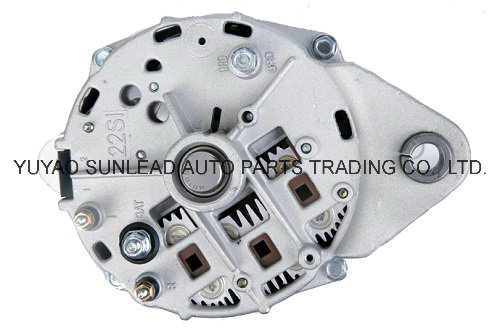

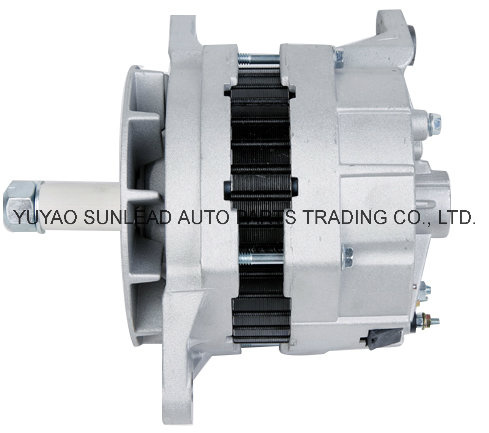

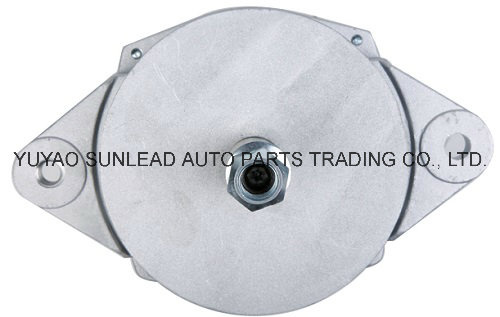

Alternator with 24V 70A
LESTER:8003 OEM:10459026
Specification:

Voltage	24V
Amperage	70A
Regulator	IR
Fan Type	EF

Application:
DELCO 21SI ALTERNATOR
INTERCHANGES:

MFG#	MFG NAME
ADR0047	ARROWHEAD
3400-0501	ATLANTIC
8003	LESTER
240-866	PIC
CA-5177	ACE
110-7642	BARSANCO
8003	BBB HD
BAO3160	BOWERS
112160	CARGO
3675174RX	CUMMINS
10459026	DELCO
10461235	DELCO
1117900	DELCO
A-1351	DIXIE
101-22201	DIXIE NEW
1305787H91	DRESSER
8322	EXCEL
21SI	FAMILY
400-12198	J & N
1305787H91	KOMATSU
ALT1022	KOMATSU REMAN
47-1218	MINNPAR
X68003	MPA HD
X68003N	MPA NEW HD
68003	NAPA HD
68003N	NAPA NEW HD
ALT-1101	NSA
42740	RCP
42789	RCP
1-2291-00DR	WAI
8003N	WAI
20-1114	WAI SALES
90-01-4152	WILSON
90-01-4152	WILSON HD
ALT1101	WOOD AUTO
51218	WORLDWIDE

Filters:

MAKE	TYPE	MODEL	YEAR	ENGINE
CUMMINS ENGINES	Engines - Industrial	K Series	1991
CUMMINS ENGINES	Engines - Industrial	K Series	1992
TIMBERJACK	Feller Bunchers	2618	95-On	Cummins 8.3L Diesel
TIMBERJACK	Feller Bunchers	2628	95-On	Cummins 8.3L Diesel
TIMBERJACK	Feller Bunchers	608	95-On	Cummins 5.9L Diesel
TIMBERJACK	Feller Bunchers	618	95-On	Cummins 8.3L Diesel
TIMBERJACK	Feller Bunchers	628	95-On	Cummins 8.3L Diesel
TIMBERJACK	Misc. Equipment	608 Harvester	95-On
VOLVO	Excavators	EC140	98-On	Cummins B3-9C
VOLVO	Excavators	EC210	98-On	Cummins B5-9C
VOLVO	Excavators	EC240	98-On	Cummins C8-3C
VOLVO	Excavators	EC290	98-On	Cummins C8-3C
VOLVO	Excavators	EC360	98-On	Cummins M11C
VOLVO	Excavators	EC460	98-On	Cummins M11C

AEP Number	AEP (OEM)	PART TYPE
ADR7009	PL78625	BEARING - NEEDLE
BRG0026	PL111-34	BEARING - ROLLER
ADR2207		BEARING RETAINER - ALTERNATOR
ADR7520	R-166	BRUSH - ALTERNATOR
ADR1313		BRUSH HOLDER - ALTERNATOR
ADR1322		BRUSH HOLDER (EMPTY) - ALT.
ADR1634		BRUSH HOLDER ARM
ADR1504		BRUSH SPRING - ALTERNATOR
HDW7400		BUSHING - MOUNTING
ADR1441		CAPACITOR
ADR2037		CASTING - D.E.F.
ADR1026		CASTING - S.R.E.
ADR1663		CONNECTOR - B+ TO RECTIFIER
ADR1659		CONNECTOR - REG TO LIGHT
ADR1661		CONNECTOR - R-TERMINAL
ADR1420		DIODE TRIO
ADR5513		FAN
HDW6123		INSULATOR - ALT. B+ STUD
HDW5501	PL76985	NUT - ROTOR
		PLUG CODE
ADR1268		RECTIFIER
ADR1260		RECTIFIER (HD)
ADR6032		REGULATOR
ADR1632		REGULATOR SEAL
ADR3011		ROTOR
HDW0241		SCREW - BRUSH HOLDER ALT.
ADR3501		SLIP RING
ADR4011		STATOR
ADR9112		TERMINAL KIT - BATTERY
ADR9137		TERMINAL KIT - R / I / S STUD
		TEST LEAD
HDW0332		THRU BOLT - ALT.
HDW3506		WASHER - PULLEY
