1.1 Product Profile
X-431 Diagun IV is an slim evolutionary vehicle diagnostic tool. Featuring a quad-core 1.1GHz processor, and a 5.5 inch capacitive screen, X-431 Diagun IV delivers diagnostic functionality which helps to diagnose vehicle issues more efficiently.
In addition, X-431 Diagun IV supports Wi-Fi connection, one-click update, diagnostic feedback and all kinds of service functions (including oil lamp reset etc).
Language:
English, Italian, Simplified Chinese, Traditional Chinese, German, Japanese, Russian, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Romanian Language, Serbian, Finnish, Swedish, Czech

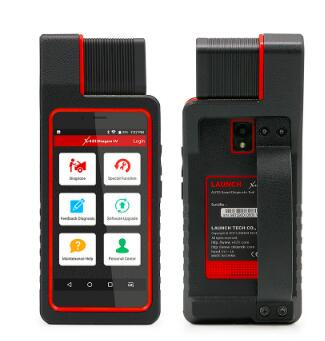

Function menu:
It mainly includes the following items:
| Name | Description |
| Diagnose | Configures X431 Diagun IV to operate as a diagnostic tool |
| Special function | To perform some maintenance items, including electronic trottle position reset, ABS bleeding, oil lamp reset etc |
| Feedback Diagnosis | This option allows you to feed back te diagnostic reports/software bugs to us for troubleshooting and analysis |
| Software Upgrade | To update vehicle diagnostic software. If you keep singed in, a pop-up message will appear on the screen once a newer version is detected |
| Maintenance Help | To browse the FAQ, Quick Start Guide,User Manual and How-To videos |
| Personal Center | To manage, activate your VCI connector, diagnostic report or personal information etc. |
1.2 Features
1. Diagnostics:
A. Diagnose
* Diagnose the electronic control systems of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs and Read data stream etc.
* Specially designed for Android platform with clear and user-friendly interface.
* Via Bluetooth, it is simple for the VCI connector to communicate with
X-431 Diagun IV.
B. Reset: Includes all kinds of maintenance resets.
C. One-click Update: lets you update diagnostic software and APK more efficiently.
2. Browser: built-in Wi-Fi module makes surfing on the internet freely.
3. Email: allows you to send and receive emails.
4. Settings: to configure your personalized X-431 Diagun IV through it.
5. Applications: other android based applications can be customized to install or uninstall.
1.3 Knowledge of X-431 Diagun IV

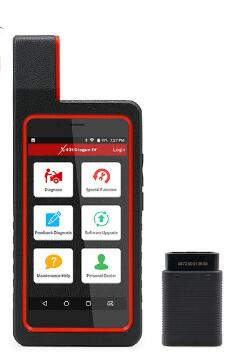

1.3.1 X-431 Diagun IV whole set
There are two main components to the X-431 Diagun IV system:
• X-431 Diagun IV Handset -- the central system (for details, please refer to
Chapter 1.3.1.)
• VCI Connector -- the Vehicle Communication Interface for accessing vehicle data

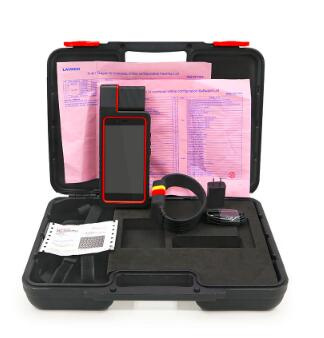

1.5 Package List
While opening X-431 Diagun IV package for the first time, please carefully check the following components. Common accessories for each X-431 Diagun IV are same, but for different destinations, the accessories of X-431 Diagun IV may vary. Please consult from the local agency or check the package list supplied with X-431 Diagun IV together.
• X-431 Diagun IV handset
• VCI connector (For connecting OBD II vehicles)
• Password envelope (A piece of paper bearing Product S/N and Activation
Code for product registration)
• OBD II extension cable (For connecting the VCI connector to OBD II
vehicle)
• OBD I adaptor (For connecting the non-16pin diagnostic connector and the
VCI connector)
• Power adaptor (For charging the X-431 Diagun IV handset)
• Non-16pin connectors (For connecting non-OBD II vehicle)
