| Prod Model: |
MV400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Mv400 |
| Keyword: |
Maxivideo Mv400 |
| Function: |
Digital Inspection Cameras |
| Mv400 Digital Videoscope: |
8.5mm Imager Head |
| Capability: |
to Stream Digital Video Directly to a PC |
| Multipurpose Videoscope: |
an Economical Solution to Inspect Machinery |
| Features: |
3.5 " High Resolution Full Color LCD Display |
| Weight: |
2kg |
| Position: |
Wholesale&Retail |
| Warranty: |
One-Year Limited Warranty |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Digital Inspection Videoscope |
Product Description

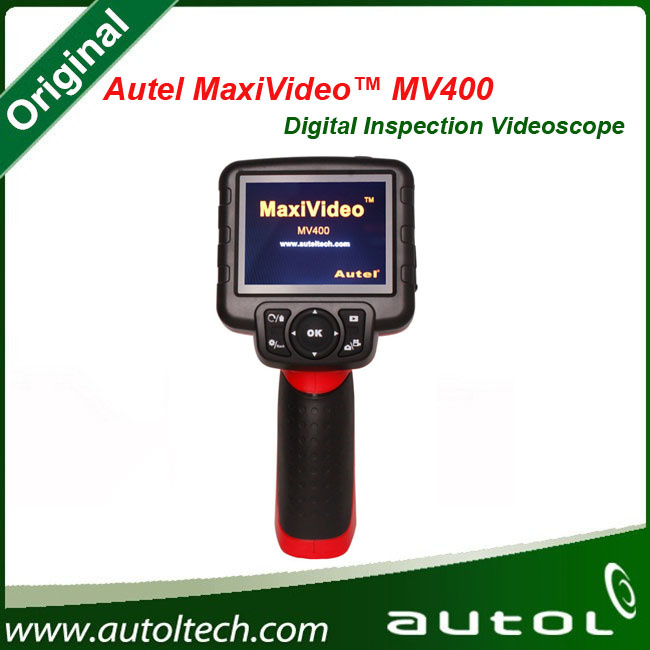

2016 New Autel Digital Inspection Videoscope MV400(8.5mm imager head)
The MaxiVideo MV400 not only features a 3.5" full color LCD screen, auto focus and viewing capacity as close as 1" with crystal clear output, but also offers the capability to stream digital video directly to a PC. The multipurpose video scope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.
MV400 Features:
Record and play back still images and video clips
3.5 " high resolution full color LCD display (320x240)
Easy-to-use, multi-language interface
Wide camera angle for in images with 640x480 resolution
With removable SD cards, save images and videos to take with anywhere
On-screen horizontal/vertical reverse
5x digital zoom for increased viewing
Mini USB connector for uploading images and videos to a computer
Probe diameter available in either 8.5mm(0.33") and fits most spark plug holes
White LED to illuminate the inspection area, with illumination control
View objects as close as 1"
Oil and scratch resistant tempered glass lens
1M (39.4") semi-rigid, but flexible watertight shaft
Built-in rechargeable Li-ion battery with up to 5-6 hours of continuous use.
Ergonomic and durable tool housing
One-year limited warranty
View objects as close as 1"
Powered by a Lithium-Ion battery with a battery life of up to 4hrs
Can operate the tool while charging the battery
Composite video output jack (RCA)
MV400 Specification:
| Recommended use | Indoor |
| Optimal viewing Distance | 1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head |
| Image capture | JPG images (640x480) AVI videos (320 x 240) |
| Screen type display | 3.5" TFT LCD |
| Display resolution | 320 x 240 |
| Power supply | Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh) |
| Tested battery life | 3-4 hours of continuous use |
| Recording medium | Micro SD card (Micro SD card is optional and not included) |
| Imager head | 5.5mm (0.22") |
| Waterproof | Imager head and cable to 3m (10') |
| Additonal ports | USB, video out (TV-out) port |
| Operating temprature | Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C) |
| Storage temprature | -4°F to 158°F (-20°C to 70°C) |
| Video output | RCA |
| TV out | NTSC, PAL |
Package List:
MaxiVideo MV400 tool
User Manual
Blow molded Case
Imager head and cable (8.5mm)
Accessories- mirror, hook and magnet
USB Cable
Video-out cable
Charger
