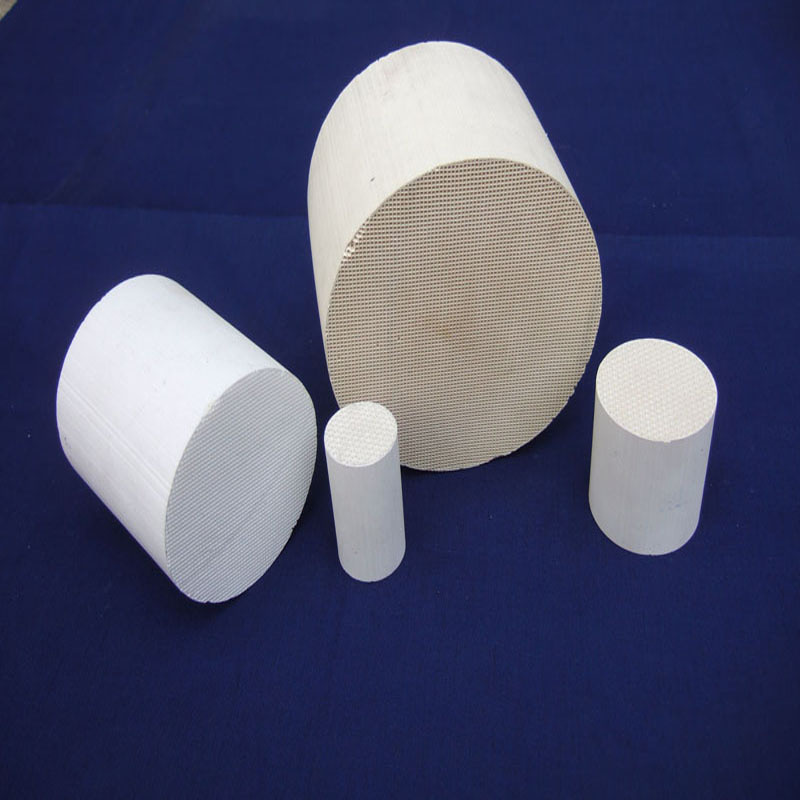

2015 new ceramic honeycomb substrate for catalytic converter
What is catalytic converter and how does it work?
A catalytic converter is a device used to reduce harmful emissions released from a car's exhaust. It can be found between the extractors and muffler. Emissions from car's exhaust consist of noxious gases such as carbon monoxide,hydrocarbons and nitrogen oxide.They are responsible for smog,myriad respiratory problems and damage to plant life.
Emissions pass through a metal honeycomb catalytic structure (normally consisting of a metallic catalysts ,platinum,rhodium or palladium) that causes a chemical reaction with the noxious gases,converting them into less harmful gases such as carbon dioxide,nitrogen and water vapors.
Why did you choose us?
WISDOM is one the leading manufacturer and supplier of advanced ceramic honeycomb products in China since 2006. By using heavy-duty, high-efficiency coatings and high-quality materials, we produce and offer catalytic converters of the very highest quality.
Our ceramic substrates are specifically designed and manufactured to deliver optimum performance for each application with minimal reduction of horsepower. Advanced methods in honeycomb coupled with our vaccum brazing technology enable us to exceed the requirements of the most demanding applications
Specifications:
Honeycomb ceramic Substrate of catalytic converter
We are able to supply ceramic substrate with different design and specifications, which works as a most important part of car emission system. Cooperate with lots of customers both at home and abroad, they are satisfied with our products and we are confident to supply better quality and service .
Here are the specifications of ceramic substrate :
Shape | Hole density(hole/in2) | Size (mm) | Size (inch) |
Round | 300 CPSI | Φ101.6 x152.4 | 4×6 |
Round | 300 CPSI | Φ118.4 x100 | 4.66×3.94 |
Round | 300 CPSI | Φ118.4 x152.4 | 4.66×6 |
Round | 300 CPSI | Φ150 x100 | 5.9×3.94 |
Round | 300 CPSI | Φ170 x100 | 6.69×3.94 |
Round | 300 CPSI | Φ190 x100 | 7.48×3.94 |
Round | 300 CPSI | Φ210 x130 | 8.26×5.12 |
Round | 300 CPSI | Φ240 x76.2 | 9.45×3 |
Round | 300 CPSI | Φ240 x100 | 9.45×3.94 |
Oval | 300 CPSI | Φ120.6 x 80 x 152.4 | 4.75×3.15×6 |
Oval | 300 CPSI | Φ144.8 x 81.3 x 152.4 | 5.7×3.2×6 |
Oval | 300 CPSI | Φ169.7 x 80.8 x 115 | 6.68×3.18×4.52 |
Round | 400 CPSI | Φ150 x100 | 5.9×3.94 |
Round | 400 CPSI | Φ144 x 152.4 | 5.66×6 |
Round | 400 CPSI | Φ118.4 x 152.4 | 4.66×6 |
Round | 400 CPSI | Φ115.4 x 152.4 | 4.54×6 |
Round | 400 CPSI | Φ106 x 100 | 4.17×3.94 |
Round | 400 CPSI | Φ103 x 100 | 4.05×3.94 |
Round | 400 CPSI | Φ101.6 x 152.4 | 4×6 |
Round | 400 CPSI | Φ100 x 100 | 3.94×3.94 |
Round | 400 CPSI | Φ93 x 152.4 | 3.66×6 |
Round | 400 CPSI | Φ83 x 152.4 | 3.26×6 |
Round | 400 CPSI | Φ80 x 100 | 3.15×3.94 |
Round | 400 CPSI | Φ76.2×50 | 3×1.97 |
Round | 400 CPSI | Φ60×85 | 2.36×3.34 |
Oval | 400 CPSI | Φ169 x 85.7 x 115 | 6.65 x 3.37 x 4.52 |
Oval | 400 CPSI | Φ169 x 80.8 x 115 | 6.65 x 3.18 x 4.52 |
Oval | 400 CPSI | Φ148 x 84 x 152.4 | 5.82 x 3.3 x 6 |
Oval | 400 CPSI | Φ144.8 x 81.3 x 152.4 | 5.7 x 3.2 x 6 |
Oval | 400 CPSI | Φ127 x 63.5 x 152.4 | 5 x 2.5 x 6 |
Oval | 400 CPSI | Φ93 x 61 x 90 | 3.66 x2.4 x 3.54 |
Oval | 400 CPSI | Φ120.6 x 80 x 152.4 | 4.75 x 3.15 x6 |
Oval | 400 CPSI | Φ143 x 98 x 152.4 | 5.63 x 3.86 x 6 |
Oval | 400 CPSI | Φ147 x 95 x 152.4 | 5.78 x 3.74 x 6 |
Oval | 400 CPSI | Φ177.8 x 114.3 x 170 | 7 x 4.5 x 6.7 |
Abnormity | 400 CPSI | 144 x 84 x 75 | 5.67 x 3.3x 2.95 |
Abnormity | 400 CPSI | 114 x 105 x 115 | 4.49 x 4.13 x 4.52 |
Abnormity | 400 CPSI | 112.2 x 92 x 115 | 4.42 x 3.62 x 4.52 |
Abnormity | 400 CPSI | 119.5 x 99.5 x 115 | 4.7 x3.92 x 4.52 |
Abnormity | 400 CPSI | 120.2 x 108.2 x 75 | 4.73 x 4.26 x 2.95 |
Abnormity | 400 CPSI | 122.3 x 104.4 x 80 | 4.81 x 4.11 x 3.15 |
If you want to know more information, please contact with us.
