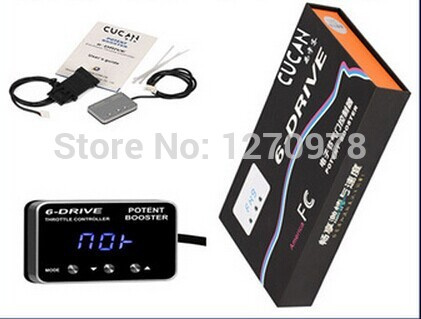

2014 Hotsale 6 Drive Electronic Throttle Accelerator, Wind Booster Ts-709 for New Fit City, Free Shipping

Prod Model:	1943818686
Year:	2010
Is Customized:	Yes

Product Description

The wind booster( xingfengxing - potent booster) sells in our shop is a domestic famous brand.


*The product casing using national standard level fire-proof material and its melting point is zero.


*Safe and reliable circuit design, Protection circuit, Instant recovery system.


*Applying SMT to mount the chips & components on boards.


*Strict process control: visual inspection-machine inspection-Aging test


*Our wind booster already passed safety audit by FCC





Note: Please note your car make and manufacturered year when placing the order!



1. Product Main Features

* Shorten the response speed of the electronic throttle

*Improve the electronic throttle\\\'s sensitivity

* Plug and play without external power supply

* 6modes/46degrees adjustable

* Full accelerating mode / semi accelerating mode / original accelerator mode /

economic mode available

* It can get inio the original car mode while revsersing for optional

*Super bright LED digital display screen, blue / red for optional





2.Installation steps

* Find the original electronic throttle pedal of your car

* When automobile is stalled and start key is off, pluck the port of electronic throttle pedal

* Insert electronic throttle coupler into auto line port.

.Insert electronic coupler into the groove of throttle pedal and check to see whether it gets stuck in position

* Insert electronic throttle coupler and display adjuster into each other in position.

*Then fix display controller with self-attached glue to the central control position or any position you like.finished




3. Working principle



*
Electronic Throttle and Fly-by-wire Throttle


Along with rapid development of auto industry, auto manufacturers in America,


Germany, Japan and other countries successively adopted electronic throttle control

system early in 1990s. Electronic throttle control system mainly consists of throttle

pedal, pedal displacement sensor, ECU (electronic control unit), data bus wire, servo

motor and choker executing mechanism. Electronic throttle is generally adopted in

fairly new models. Electronic throttle is named in comparison with fly-by-wire throttle

which features direct connection between throttle pedal and choker with thin steel

wire. The treading depth of throttle pedal directly corresponds to the opening width

of choker. Electronic throttle is free of wire. Treading depth of throttle will be converted

into resistance value after a potentiometer (with variable resistance) is mounted in

pedal. Electronic system of automobile indirectly determines the depth of pedal through

sampling of resistance value. Finally, ECU will activate stepping motor to control the

opening width of choker. It can be easily found through principle comparison that fly-

by-wire throttle features simple system and direct control, with the proportion of the

opening width of throttle and choker being 1:1. Characteristics of electronic throttle

are as follows: throttle pedal only indicates drivers operating intention, while the

final right to control choker belongs to ECU.


*Characteristics of Electronic Throttle Control System and ECU(ECU)

In models with electronic throttle control system, ECU will analyze the treading depth

of throttle in combination with auto conditions when controlling electronic choker, and

then calculate appropriate opening width of choker at the current time. When diver

speeds up suddenly at the time of startup (tread the pedal to
