2 in 1 Auto-Levelling Pipe Drain Inspection Camera Equipment
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

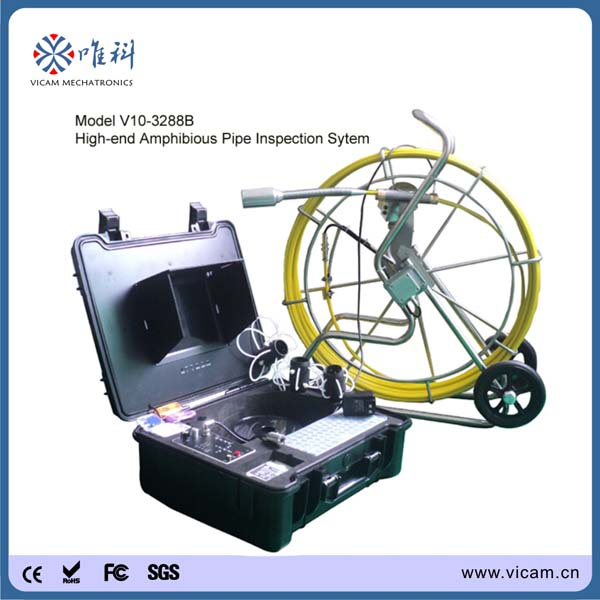

2 in 1 Auto-Levelling Pipe Drain Inspection Camera Equipment ( Ideal for 2 different use ) 1. Heavy-duty Pipe Inspection kit
Camera Head
* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: sapphire glass

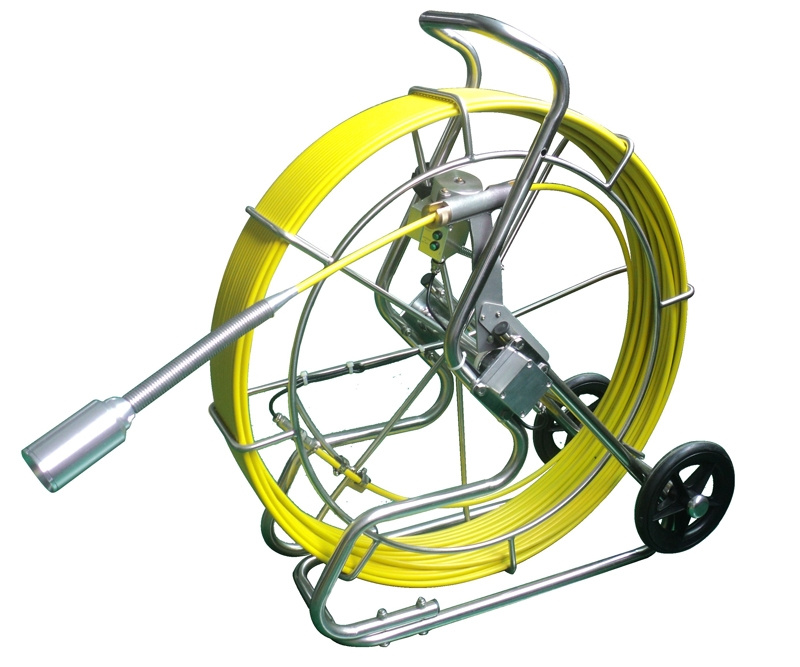

* 3 size Camera skids for different pipe diameter use(110, 154, 230mm) Havey-Duty Cable Reel
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
* New design Counter device error rate less than 0.1%2. Handle inspection kit* Stainless steel bullet waterproof camera Φ 23 X 45mm
* 30m soft cable
* handle cable reel
* ideal for underwater or vertical pipe inspectionMonitor*10 inch HD LED monitor
* Display model: 4:3
* Visible angle: horizontal & vertically 170°

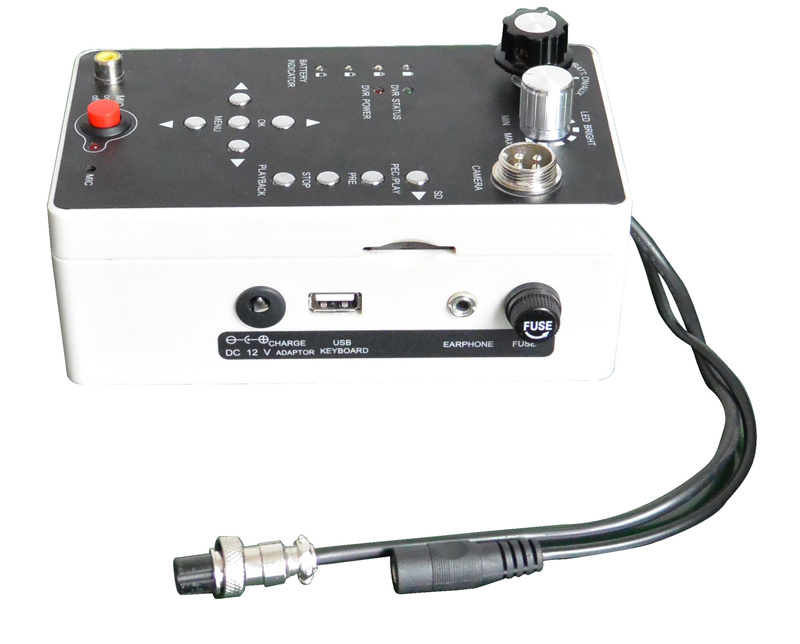

* Power supply DC 12VDVR Control Box
* Power supply 12V
* DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply pack (18650 x 9 pcs 6600 mAH)
* Charging time 5 hours, working time 6 hours
* USB jack for waterproof Keyboard (Keyboard included)
* MIC on / off button and earphone output jack ( earphone bud included)Unit control carrying case* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximumCompany information Backed by Cyberia SAS and Shenzhen Institutes of Advanced Technology
Vicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.
Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.
Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.
Contact Us Today
For more information about our products and services, visit our Made-in-China Online showroom and then contact me.
|

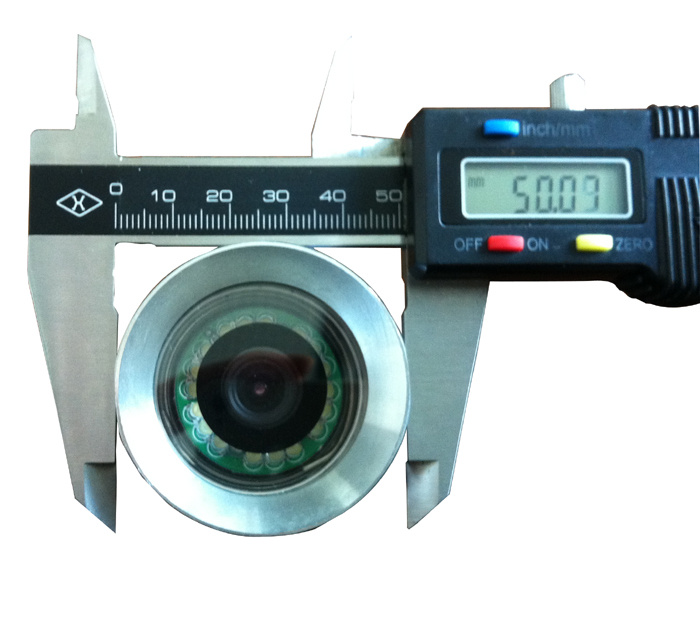

CCD Aluminum Camera data |
|
1 |
camera size: Φ50mm×89mm ; |
|
2 |
camera housing material: Aluminum |
|
3 |
camera window: sapphire glass |
|
4 |
connecting type: golden pins slip-ring connection |
|
5 |
sensor: 1/3" color CCD |
|
6 |
field of view: 90° |
|
7 |
resolution: PAL:752H×582V NTSC: 768H×494V; |
|
8 |
horizontal definition: 600TVL; |
|
9 |
picture: Self-leveling |
|
10 |
S/N rate: >48dB(AOC on) |
|
11 |
electronic shutter: 1/50(1/60) - 1/100000 s |
|
12 |
sensitivity: 0.01Lux |
|
13 |
video output: 1.0 Vp-p / 75Ω |
|
14 |
lighting: 18 high intensity white LED, brightness adjustable |
|
15 |
waterproof: yes, class IP68 |
|
16 |
working voltage: DC 12V |
|
17 |
working current: 63mA Max (LED Max: 120mA) |
|
18 |
operating temperature: -10ºC~60ºC |
| Prod Model: |
V10-3288B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waterproof CCTV Inspection Camera: |
Fixed Focus Lens Camera |
| Monitor Size: |
10 Inch |
| LED Lighting: |
18 Pieces |
| Waterproof: |
IP68 |
| Camera Diameter: |
50mm |
| Camera Sensor: |
CCD |
| Cable Diameter: |
9mm |
| Cable Material: |
Fiberglass Push Rod |
| MOQ: |
1 Unit |
| Assurance: |
1 Year |
| Certification: |
UL, FCC |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
