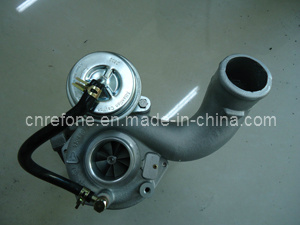

2.67L Electric Turbo Kit 53049880026 078145704m 5304-988-0026 53049700026 5304-970-0026 For Audi RS4 V6 Bi-turbo with AZR/ASJ Engine1.Product Description
Part Number | 53049880026 |
| OE number | 078145704M, 078145702M, 078145704M, 078145704MX, 078145704MV |
| Year | 2000-05 |
| Description | Audi RS4 V6 Bi-turbo Right Side |
| Manufacturer Part Number | 53049700026 |
| CHRA | 53047100510 |
| Turbo Model | K04-2275ECD5.82KCAXH, K04-2078EYE4.82KCAXM |
| Engine | ASJ/AZR |
| Displacement | 2.67L, 2671 ccm , V6 Cylinders |
| KW | 280/380 |
| RPM Max | 6100 |
| Fuel | Gas |
| Angle a (compressor housing) | 0 |
| Angle (turbine housing) | 214.9 |
| Bearing housing | 53041500009 (W/Cooled) (Single Oil Brg, replaces 53041506/9) |
| Turbine Wheel | 53041205015 (53041205010) |
| Comp. Wheel | 53041232021 (53031515712) |
| Back plate | 53041515712 |
| Heat Shield | 53041652000 |
| Repair Kit | 53037110000 |
| Turbine Housing | 53037110000 |
| Compressor Cover | 53041015038 |
| Actuator | 4 |
| Turbine Housing AR | 58251104083 |
| Settings Waste gate (pressure) | 0.5 Bar |
| Settings Waste gate (lifting rod) | 2.0 mm |
| Manufacturer | Borg Warner - 3K - Schwitzer |
2.Applications2000-2005 Audi RS4 V6 Bi-turbo with AZR/ASJ Engine
2000-2005 Audi A4 V6 Bi-turbo with AZR/ASJ Engine
