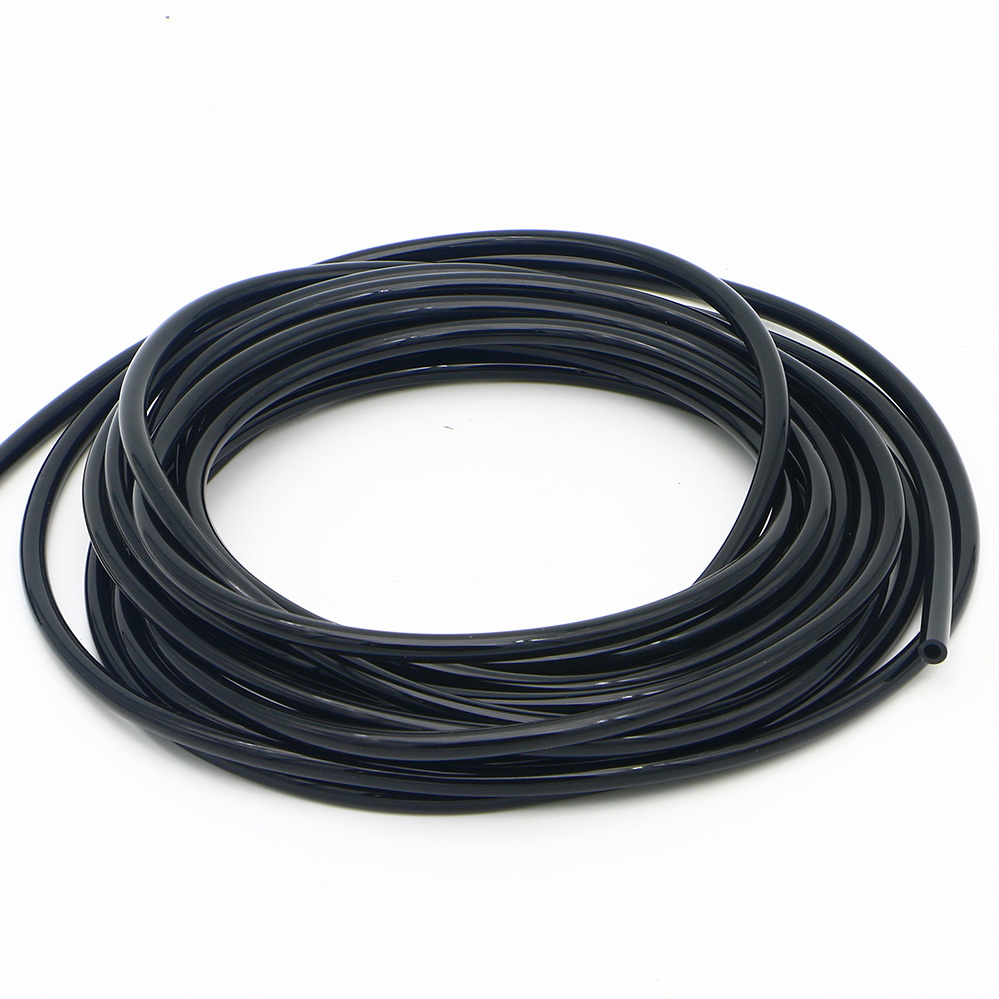

2.5-4.8mm I. D. Pur Black Gasoline Petrol Fuel Lubricant Tubing
| Price: |
US $ 0.35-0.45/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
PUR Black Gasoline Petrol Fuel Lubricant Tubing Tubes
Applications: Plastic Fuel Tank, Carburetor, Brush Cutter, Chain Saw ,Hedge Trimmer ,Blower, Pole Chain Saw, lawn Mower, Duster, Power Sprayer, Lubricant Line, Motorcycle, Generator ,Coolant transfer line , Other equipment based on Small off-road Engine(SORE)| Normal size in China & Taiwan |
| Model | I.D(mm) | O.D(mm) | color | Part number | I.D(mm) | O.D(mm) | color |
| AUF2545 | 2.5 | 4.5 | Transparent Blue Black Yellow | AUF4080 | 4 | 8 | Transparent Blue Black Yellow |
| AUF2550 | 2.5 | 5 | Transparent Blue Black Yellow | AUF4585 | 4.5 | 8.5 | Transparent Blue Black Yellow |
| AUF2552 | 2.5 | 5.2 | Transparent Blue Black Yellow | AUF5090 | 5 | 9 | Transparent Blue Black Yellow |
| AUF3050 | 3 | 5 | Transparent Blue Black Yellow | AUF5010 | 5 | 10 | Transparent Blue Black Yellow |
| AUF3055 | 3 | 5.5 | Transparent Blue Black Yellow | AUF6010 | 6 | 10 | Transparent Blue Black Yellow |
| AUF3060 | 3 | 6 | Transparent Blue Black Yellow | AUF6012 | 6 | 12 | Transparent Blue Black Yellow |
| AUF3070 | 3 | 7 | Transparent Blue Black Yellow | AUF635127 | 6.35 | 12.7 | Transparent Blue Black Yellow |
| AUF3565 | 3.5 | 6.5 | Transparent Blue Black Yellow | AUF8012 | 8 | 12 | Transparent Blue Black Yellow |
| Normal size in USA & Euro | |
| Part number | I.D(inches) | O.D(inches) | color | IPart number | I.D(inches) | O.D(inches) | color |
| AUF2448 | 3/32"(2.4mm) | 3/16"(4.8mm) | Transparent Blue Black Yellow | AUF6495 | 1/4"(6.4mm) | 3/8"(9.5mm) | Transparent Blue Black Yellow |
| AUF3264 | 1/8"(3.2mm) | 1/4"(6.4mm) | Transparent Blue Black Yellow | AUF8011 | 5/16"(8mm) | 7/16"(11mm) | Transparent Blue Black Yellow |
| AUF4880 | 3/16"(4.8mm) | 5/16"(8mm) | Transparent Blue Black Yellow | | | | |
Characteristic:Suitable for ethanol & gasoline (US E10)
Highly flexible, easy to install
Specifically designed for lubricants and fuel
Resistant to UV and Ozone
Resistant to harden and swell
Hose Hazard Warnings & Use Instructions1. All the hose made by ATC is for special uses, you the original equipment manufacturer and/or re-seller and/or user must provide the detail of requirement to ATC's sales representative.
2. ATC Fuel Hose are made of "thermoplastic Material", and as such, the performance is a affected by temperature and pressure. The user must conduct tests to determine suitability for use in the user's process or application.
3. To avoid catastrophic disconnecting during use, always use retaining clamps or adhesives when affixing tubing to fittings and /or connectors.
4. ATC fuel hose's Size must be selected based the following 5 points connection Size.
| Parameter | Test Method | Unit | Typical Value |
| Hardness | DIN 53505 | shore A | 79 |
| Color | - | - | Natural-Transparent |
| Specific Gravity | ENISO 1183-1-A | kg/m3 | 1.21 |
| Tensile Stength (Mpa) | 53504-S2 | MPA | 50 |
| Elongation at break | 53504-s2 | % | 690 |
| Operating Temp(Max) | - | ºC | 85 |
| stress at 100% elongation | 53504-s2 | MPA | 3.9 |
| stress at 300% elongation | | MPA | 7.8 |
| Tear strength | ISO34-1Bb | ºC | 61 |
| Compression Set at room temperature | ISO815 | % | 24 |
| Compression Set at room temperature | ISO | % | 36 |
| Swelling (E10) | 240h*23ºC | % | 18 | |
| Swelling (93#:Mobile 2T=25:1) | 240h*23ºC | % | 16 | |
| Swelling CM 15 | 360h*23ºC | % | 31 | |
| UV resistance(GBT/18950) | 300nm*50w/m2*70ºC±3ºC*50%*500hr | - | No crack | |
| ASTM-Oil Swelling | Oil 1 | at 100 ºC*24h | % | 2 |
| Oil 2 | at 100 ºC*24h | % | 1 |
| Oil 3 | at 100 ºC*24h | % | 3 |
| Swelling CM 15 | 360h*23ºC | % | 36 |
| SwellingFuel Types ASTM D471 | Fuel A | Iso-octane | % | 2.5 |
| Fuel B | Iso-octane/Toluene 70%/30% | % | 14 |
| Fuel C | Iso-octane/Toluene 50%/50% | % | 22 |
| Fuel D | Iso-octane/Toluene 60%/40% | % | 18 |
| | | | | | | | | |
| | | | | | | | | |
| Prod Model: |
2/5-4.8MM I. D. PUR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PVC Fuel Lines: |
ID 3/16" X 5/16" Od |
| Fuel Lubricant Tubing: |
Pur Tubes |
| Fuel Lubricant Tube: |
Pur Tubing |
| Fuel Lubricant Hose: |
Gas Petrol |
| Fuel Line: |
Inner Diameter 2.5mm to 4.8mm |
| Fuel: |
Gasoline |
| Body Material: |
Aluminium |
| Component: |
Fuel Injection Device |
| Certification: |
COP |
| Cylinder: |
Single Cylinder |
| Stroke: |
2 Strokes or 4 Strokes 6 Strokes |
| Fuel Saver Type: |
Any |
| Carburettor Type: |
Any Carbs |
| Application: |
Smal Engine |
Ningbo Eastar Electromechanical Industrial Trading Co., Ltd is a manufacturer and dealer for garden tool, Chainsaw, lawn Tractor, agriculture machinery, snow blower spare parts and their aftersales services
We produce and resell Air filter, oil filter, Fuel Pump, fuel filter, fuel hose, carburetor, blade, trimmer line, trimmer head, recoil starter, Cylinder Piston kit, Starter Motor, Saw Chain, Guide Bar, Chain saw Grinder, Chain File,
Pulley & Idle, Electric PTO clutch, Mandrels Quills, Spindle Housing Shaft Assembly, V Belt, Hex Kevlar V Belt, Starter Motor &Electric PTO Clutch & Solenoid Switch, , Lawn & Garden Tubeless Tire, Tire Tube, Snow Mud Turf Wheel, Farm & Golf Tubeless Tire, PU Rubber Foam Tire, Parts Washer & Ultrasonic Cleaner, Carby Carburetor etc
Main aftermarket brands are STIHL HUSQVARNA MTD PARTNER OLEC-MEL, KOHLER, Honda, KAWASAKI, OREGON, Tecumseh, ROBIN, PARTNER, POULAN, SHINDAIWA, Briggs Stratton, ECHO, WALBRO, ZAMA, YANMAR, Mitsubishi etc.
OEM ODM are available!
