Product Description:Part Number: 3590044
Previous Part Number: 3590045, 3536995, 3536996, 3590044, 4039173, 4046031
OE number: 3800471, 3800471RX, 3803938, 3590045
Year: 1999-09
Description: Truck, Bus, Diamond & Delta Plus Alpha
Manufacturer Part Number: 4046031, 2834419, 3590045, 4039173
CHRA: 3580726
Turbo Model: HX55-E9861L/H22E11D, HX55
Engine Manufacturer: Cummins
Engine: M11, ISM, ISME 380 20, B5.9-C, ISME Euro-2 & Euro-3
Fuel : Diesel
Angle α (compressor housing): 8/153/264/330
Angle β (turbine housing) : 90/92/130
Bearing Housing: 3535704
Turbine Wheel : 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades) (1153055436)
Comp. Wheel: 3534329/4041666 (Ind. 65.1 mm, Exd. 99.06 mm, 12 Blades)
Back plate: 3528096 (1153055300)
Heat shield Number: 3529846/3533038 (1153055340)
Repair Kit : 3580762/3575181 (1153055750)
Turbine Housing: 3536942
Compressor Cover: 3594775
Compressor Cover (Noise Baffle): 3595516
Compressor Cover (Ring) : 3531238
Gasket (turbine inlet): 409123-0002
Gasket oil inlet : 210019
Gasket (oil outlet): 210060
Application:2007-12 Cummins Truck, Bus with ISM, ISME, M11 Engine
1999-09 Cummins Truck Bus, Truck Delta Alpha Plus with M11 Engine

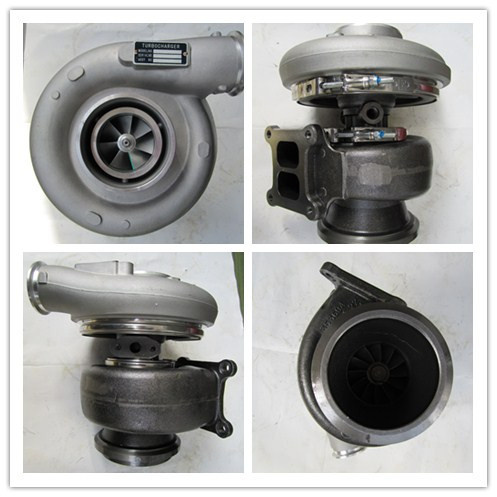

Photo:
