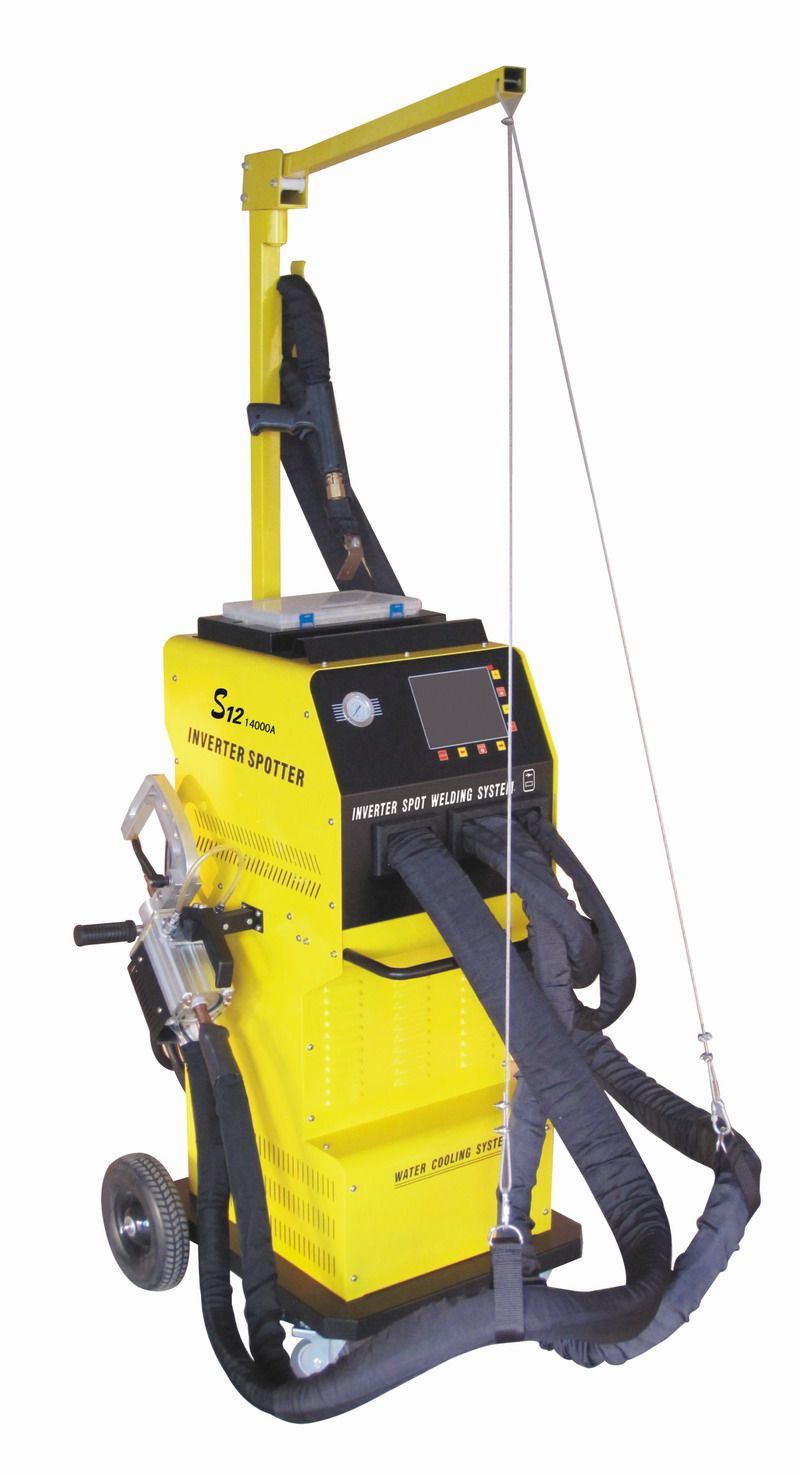

INVERTER SPOT WELDING SYSTEM S12 with USB
MODEL: S12
Spot Welding Gun: Single Sided Gun, C-Gun, X -Gun
Welding Pulse: Single Pulse, Double welded, Pulse welding, No
Spark welding
Display system: 8"LCD Display
Protection and Testing functions: Air pressure, Voltage testing,
Offset Voltage, Temperature sencer monitoring, Lack of phase,
Over-current, Thermal protections, cooling fluid monitoring
Cooling System: Water cooling Cables/C-gun/x-gun/Arm
Sets/Radiator/Transformer
Input Voltage(50/60Hz): 380-415V/3pH or 208-240V/3pH
No-load Voltage(V): 4-21V
Max Welding Current(A): 13000A
Max Current(A): 14000A
Max Absorbed power(KW): 75KW
Rated Power X=50%(KW): 26KW
Power Factor(cosphi): 0.8
Max Welding Thickness(mm): 4+4 or 2+2+2
Max electrodes power 8bar(daN): X-Gun 345; C-Gun 350(600Lb)
Duty Cycle: 8%
Insulation class: H
Protection degree: IP22
Diamension(mm): 800*730*1260
Net Weight (kg): 190
| MODEL | S5-2 | S5-3 | S6-2 | S6-3 | S8-2 | S8-3 | S9 | S10A | S10B | S11 | S12 |
| Spot Welding Gun | Single Sided Gun, C- Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C- Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun, X -Gun | Single Sided Gun, C-Gun, X -Gun |
| Display system | LED Display | LED Display | LED Display | LED Display | 8" LCD Display | 8" LCD Display | 8" LCD Display | 8" LCD Display | 8" LCD Display | 8" LCD Display | 8" LCD Display |
Protection
and Testing
functions | Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections | Air pressure, Voltage testing, Offset Voltage, Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections | Air pressure, Voltage testing, Offset Voltage, Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections, cooling fluid monitoring | Memory card& Automitic adjusting the pressure functions, Air pressure, Voltage testing, Offset Voltage, Temperature sencer monitoring, Lack of phase, Over-current, Thermal protections, cooling fluid monitoring | Memory Autmitic intelligent welding system, Memory card& Automitic automatic detection of the thickness to be welded and variety welding parameters can be adjusted by intelligent system with record function, expert mode function, Air pressure, Voltage testing, Offset Voltage, Temperature sencer monitoring, Lack of phase, Over-current, Voltage protection, Thermal protections, cooling fluid monitoring |
| Cooling System | Fan Cooling | Cable Fan cooling, Water cooled C-gun | Water cooling Cables/C-gun/Arm sets/Radiator/Transformer | Water cooling Cables/C-gun/x-gun/Arm sets/Radiator/Transformer/Diode |
| Welding Pulse | Single Pulse, Double welded, Pulse welding | Single Pulse, Double welded, Pulse welding, No Spark welding |
| Input Voltage(50/60Hz) | 380-415V/3ph or 208-240V/3ph |
| No-load Voltage(V) | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V | 4-21V |
| Max Welding Current(A) | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 13000 | 14000 | 14000 | 14000 |
| Max Current(A) | 13000 | 13000 | 13000 | 13000 | 13000 | 13000 | 13000 | 14000 | 15000 | 15000 | 15000 |
Max Absorbed power
(KW) | 73 | 73 | 73 | 73 | 73 | 73 | 73 | 75 | 85 | 85 | 85 |
| Rated Power X=50%(KW) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 26 | 30 | 30 | 30 |
| Power Factor(cosphi) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max Welding Thickness(mm) | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 4+4 or 2+2+2 | 5+5 or 3+3+3 | 5+5 or 3+3+3 | 5+5 or 3+3+3 |
| Max electrodes power 8bar(daN) | X-Gun 345; C-Gun 350(600Lb) | X-Gun 400
C-Gun 450 |
| Duty Cycle | 5% | 5% | 5% | 5% | 5% | 5% | 5% | 10% | 10% | 10% | 10% |
| Insulation class | H | H | H | H | H | H | H | H | H | H | H |
| Protection degree | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 |
| Diamension(mm) | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 | 800*730*1260 |
| Net Weight (kg) | 160 | 160 | 185 | 185 | 170 | 170 | 185 | 190 | 210 | 210 | 210 |
| 20GP container (set) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| 40GP Container (set) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
