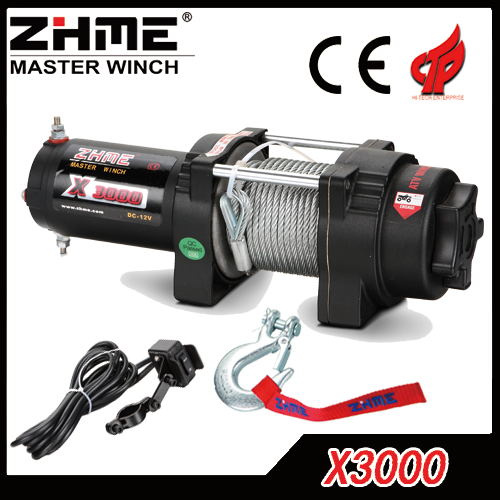

12V 3000lbs Hot Selling ATV Mini Electric Winch

12V 3000lbs Hot Selling ATV Mini Electric Winch
Price: Negotiable/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: X3000
Product Name: Electric Winch
Rated Line Pull: 3000lbs Winch
Motor: Permanent Magnetic1.5 HP /1.0kw,12V Dcwinch Motor
Gear Ratio: 198: 1
N.W: 22 Lbs (10kgs)
MOQ: 50 Winches
Type: Electric Winch
Power Type: Permanent-magnet DC
Pull Direction: Forward
Working Voltage Of Electric Winch: Low Voltage
Certification: RoHS
Electric Winch Model: ATV/UTV Winch
Brand: Zhme
Applicable Environment: ATV/UTV

Product Description

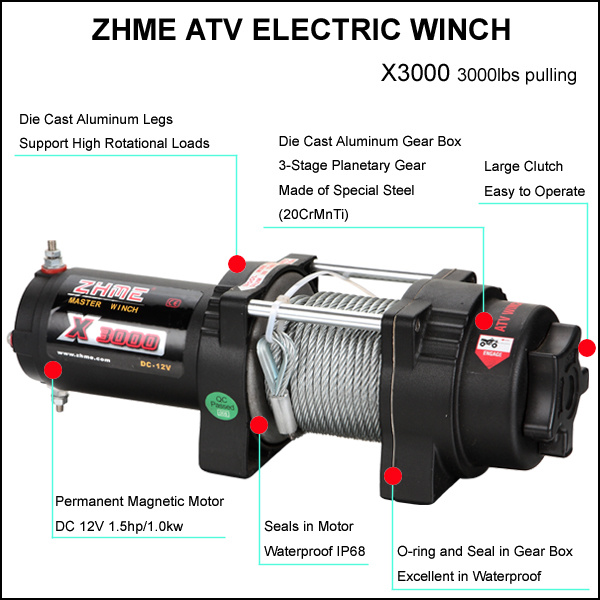

Characters:
1.Handle or wireless remote control
2.Permanent magnetic 1.5 hp /1.0kw,12V DC winch motor
3.Hand clutch,simple and reliable operation


Specification:
Rated line pull: 3000Lbs (1361kgs) single line
Motor:Permanent magnetic motor 1.5 hp /1.0kw,12V DC
Gear Train:3 stage planetary
Gear ratio: 198:1
Clutch:Sliding Ring gear
Braking action:Automatic in the drum
Fairlead:Roller fairlead for wire rope
Wire rope:5.4mm ×12m
Drum size:50mm×76.5mm
Dimensions: 334mm×114mm×120mm
Mounting bolt pattern:124mm×76mm
Battery:Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m)
N.W: 22 lbs (10kgs)
Packing:440mmx250mmx220mm(1000pcs per 20' container)
Line speed and motor current (first layer)
Line pullLbs0100020003000
Kgs04549071360
Line speedFPM24.514.710.56.9
MPM7.54.53.22.1
Motor currentAmps1575120175
Line pull and cable capacity
Layer of cable1234
Rated line pull per layerLbs3000252021701870
Kgs13601140985849
Cable capacity per layerFt.7.215.725.939
M2.24.87.912
Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
