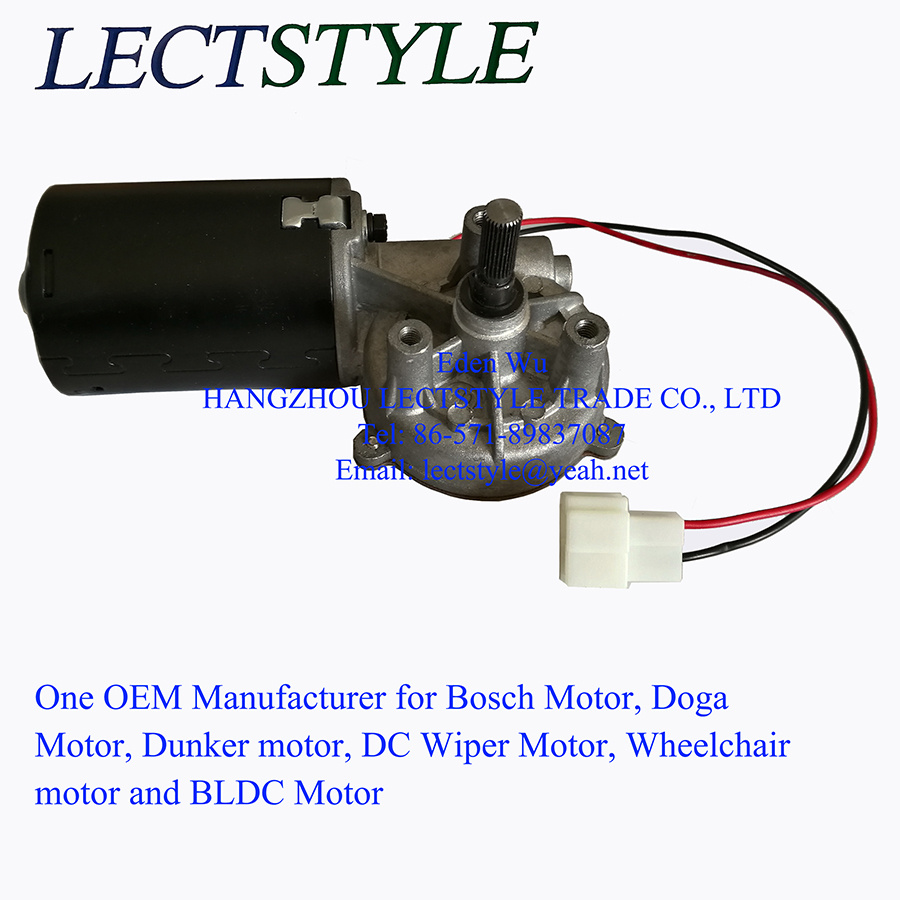

12V 24V Bosch Doga Auto DC Electric Wiper Motor
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T |
Bosch Motor, Doga Motor, Dunker motor, Front Windscreen DC Wiper Motor
Buick, Chevy, Dodge, Ford, Fiat, GMC, Honda, Hyundai, ISUZU, KIA, MAZDA, MITSUBISHI, NISSAN, SUZUKI, TOYOTA, VOLVO, Chevrolet Front windshield wiper motor
Features:
1. Swing output;
2. Compact, series design;
3. Convenient installation, small space occupation;
4. Multi functional selectivity combination (Reset, with switch, single or double speed)
Application:
1. Construction machinery cab.
2. Motorcycle windshield.
3. Agricaltural vehicles.
4. Rear window of all kinds of vehicle.
Raw material of wiper motor: copper, iron, aluminum alloy, plastic, etc.
Working temperature: -40°c - 65 °c
We follow QC/T413-2002 Basic Technical Requirements of Automotive Electrical Equipments, QC/T29090-1992 Automotive Wiper Motor Technology Requirements.
Our Services
Free samples are for serious customer.
Your OEM sample and ODM design are welcomed.
Please let us know in time if there is any problems with our products, we will solve the problem at the first time.
Prod Model: |
F006 B20 093 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
Reduction Ratio: |
52:2 |
Number Of Stage: |
2 |
Voltage: |
12V |
Nominal Power: |
42W |
Nominal Current: |
9.4A |
Output Speed: |
135rpm Min. |
Nominal Torque: |
3 N.M |
Type Of Duty: |
S1 |
Protection Grade: |
IP23 |
Part: |
Wiper Motor |
Material: |
Carbon Metal |
Range: |
Single Side |
Bone: |
With Bone |
Driving Type: |
Mechanical |
Size: |
16" |
Application: |
Trucks |
Type: |
Ngw |
Brand: |
Lectstyle |
