12V 24V 120W Front Windshield Electric Wiper Motor for Buick, Ford, FIAT, Gmc, Honda and Hyundai Car
| Price: |
US $ 34.5-48.9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
Buick, Chevy, Dodge, Ford, Fiat, GMC, Honda, Hyundai, ISUZU, KIA, MAZDA, MITSUBISHI, NISSAN, SUZUKI, TOYOTA, VOLVO Chevrolet Front windshield wiper motor or electric wiper motor

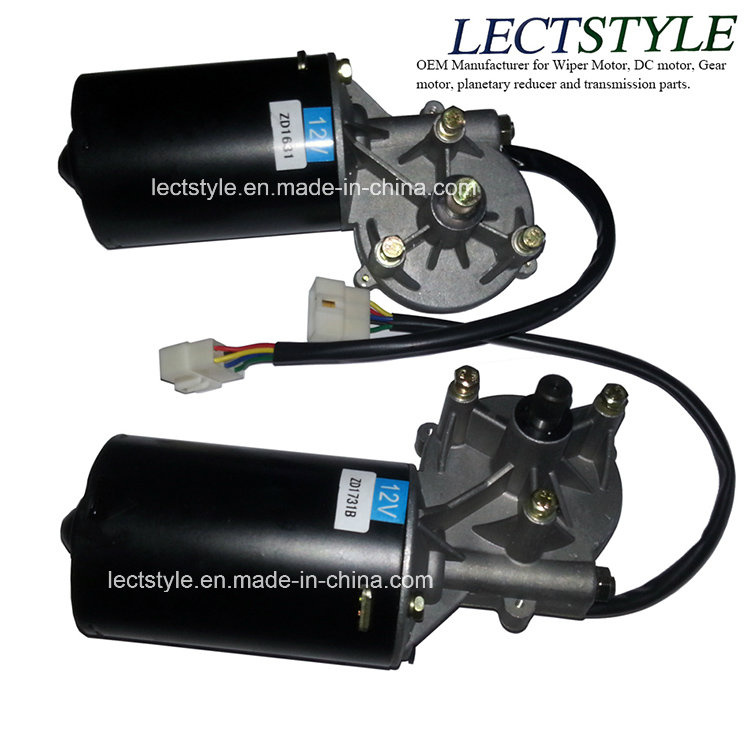

LST1631/LST2631 24V/12V 100W Loaders Front Windscreen DC Wiper Motor
Features:
1. Swing output;
2. Compact, series design;
3. Convenient installation, small space occupation;
4. Multi functional selectivity combination (Reset, with switch, single or double speed)
Application:
1. Construction machinery cab.
2. Motorcycle windshield.
3. Agricaltural vehicles.
4. Rear window of all kinds of vehicle.
Raw material of wiper motor: copper, iron, aluminum alloy, plastic, etc.
Working temperature: -40°c - 65 °c
We follow QC/T413-2002 Basic Technical Requirements of Automotive Electrical Equipments, QC/T29090-1992 Automotive Wiper Motor Technology Requirements.
Our Services
Free samples are for serious customer.
Your OEM sample and ODM design are welcomed.
Please let us know in time if there is any problems with our products, we will solve the problem at the first time. | Technical parameters: |
| Model | | LST1631B | LST2631 |
| Rating Voltage | UN | 12V | 24V |
| Rating Power | PN | 120W |
| No Load Current | IN | 1A/0.6A |
| No Load Speed | nN | 45/65±5RPM |
| Load Current | ID | 1.5/1.8A |
| Load Speed | nD | 40/60±5RPM |
| Wiping Angle | a° | 45,50,55,58,60,65,70,75,80,85,90,95,100, |
| 105,110,115,120,125,000,000 |
| Protection Circuit | EMC or overload protection |
| Protection Class | | IP33 |
| Weight | W | 1.4kg |
| Wiper motor connector: |
| Connector type | Red wire | Black wire | Green wire | Yellow wire |
| 4 holes 4 wires | Positive | Negative | Low speed | Reset |
| Prod Model: |
LST1631B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
24V/12V |
| Rated Power: |
100W |
| Wiping Angle: |
45--90 |
| Motor Material: |
Iron |
| No Load Speed: |
40/60+/-5rpm |
| Protection Circuit: |
EMC or Overload Protection |
| Protection Class: |
IP33 |
| Part: |
Wiper Motor |
| Material: |
Carbon Metal |
| Range: |
Double Side |
| Type: |
Traditional Batch Type |
| Bone: |
With Bone |
| Driving Type: |
Mechanical |
| Size: |
22" |
| Application: |
Car |
| Brand: |
Lectstyle |
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).

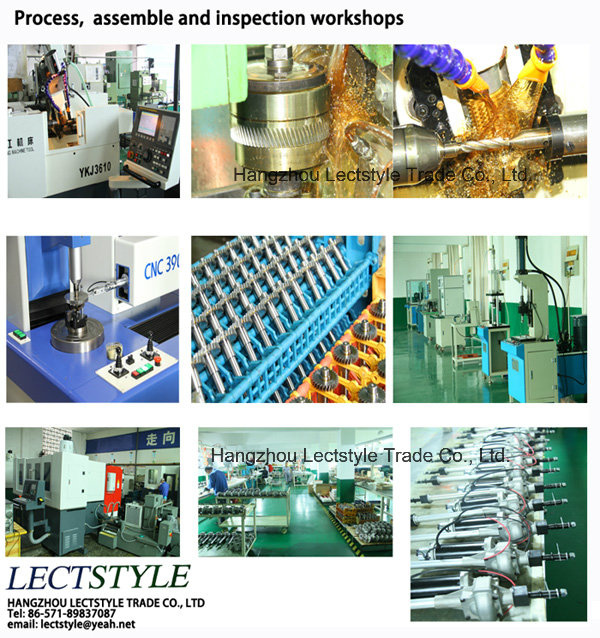

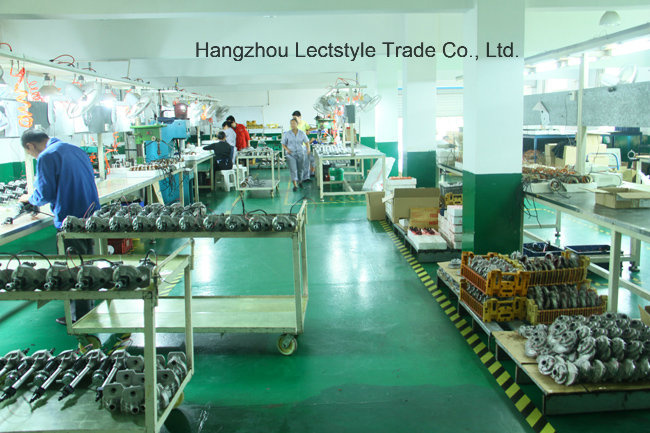

Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
