| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 135 |
| Pulley Class | S6 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | DENSO |
| Brief | BUICK ALLURE SUPER 5.3L 2008-09
BUICK LACROSSE SUPER 5.3L 2008-09
CHEVROLET IMPALA SS 5.3L 2006-09
CHEVROLET MONTE CARLO 5.3L 2006-07
PONTIAC GRAND PRIX GXP 5.3L 2005-08
6-GROOVE PULLEY 63mm OD
ADDL INFO: SMALL 2-PIN L-F PLUG |

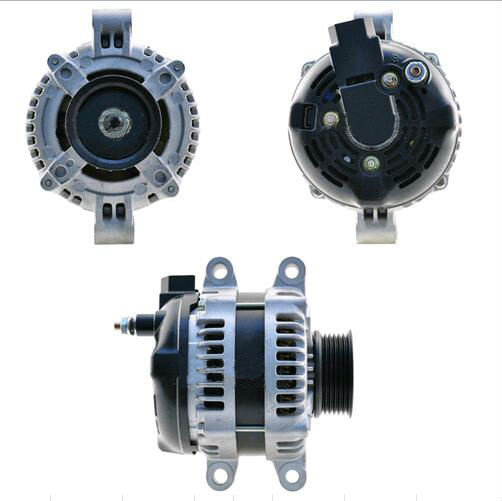

| Detailed | This is a Denso Alternator for the 2006-On Chevrolet Impala and Monte Carlo as Well as the 2005-06 Pontiac Grand Prix All With the 5.3L Engine. This Unit Has a Sideways Mount the B+ Stud at 7:00 (Rear) the Plug at 6:00 (Side) and Uses a Conventional 6-Groove Pulley. |
| AND0319 | ARROWHEAD |
| 11179 | LESTER |
| 290-5203 | PIC |
| 11179 | BBB |
| 11179 | BBB NEW |
| 104210-4220 | DENSO |
| A-80302 | DIXIE |
| 10777 | EXCEL |
| Denso Hairpin | FAMILY |
| 15139480 | GENERAL MOTORS |
| 400-52122 | J & N |
| 213-9671 | NAPA POWER PREMIUM PLUS |
| A3179 | USA INDUSTRIES |
| 1-2972-01ND | WAI |
| 90-29-5617 | WILSON |
| 90-29-5617 | WILSON NEW |
| 12738 | WORLDWIDE |
| BUICK | Auto and Light Truck | ALLURE | 2008 | 5.3L(325) V8 |
| BUICK | Auto and Light Truck | ALLURE | 2009 | 5.3L(325) V8 |
| BUICK | Auto and Light Truck | LACROSSE | 2008 | 5.3L(325) V8 |
| BUICK | Auto and Light Truck | LACROSSE | 2009 | 5.3L(325) V8 |
| CHEVROLET | Auto and Light Truck | IMPALA | 2006 | 5.3L(325) V8 |
| CHEVROLET | Auto and Light Truck | IMPALA | 2007 | 5.3L(325) V8 |
| CHEVROLET | Auto and Light Truck | IMPALA | 2008 | 5.3L(325) V8 |
| CHEVROLET | Auto and Light Truck | IMPALA | 2009 | 5.3L(325) V8 |
| CHEVROLET | Auto and Light Truck | MONTE CARLO | 2006 | 5.3L(325) V8 |
| CHEVROLET | Auto and Light Truck | MONTE CARLO | 2007 | 5.3L(325) V8 |
| PONTIAC | Auto and Light Truck | GRAND PRIX | 2005 | 5.3L(325) V8 |
| PONTIAC | Auto and Light Truck | GRAND PRIX | 2006 | 5.3L(325) V8 |
| PONTIAC | Auto and Light Truck | GRAND PRIX | 2007 | 5.3L(325) V8 |
| PONTIAC | Auto and Light Truck | GRAND PRIX | 2008 | 5.3L(325) V8 |
| BRG0005 | ND949100-2250 | BEARING - ROLLER |
| BRG0014 | ND949100-2790 | BEARING - ROLLER |
| AND7501 | ND021660-0390 | BRUSH - ALTERNATOR |
| AND1308 | | BRUSH HOLDER - ALTERNATOR |
| AND1042 | | COVER - RECTIFIER |
| AND1628 | | INSULATOR - ALT. B+ STUD |
| | | PLUG CODE |
| AND5039 | | PULLEY |
| AND1259 | | RECTIFIER |
| AND6158 | T7324 | REGULATOR |
| AND3501 | | SLIP RING |
| AND4030 | ND021100-4940 | STATOR |
| SSP0201 | | TEST LEAD |
