| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 130 |
| Pulley Class | S6 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | DENSO |
| Brief | ACURA MDX 3.5L 2003-04
ACURA TL 3.2L 2004
6-GROOVE PULLEY 65mm OD
ADDL INFO: C-FR-IG-L PLUG
SEARCH: 495643 495645 (SAME AS THIS UNIT)
SEARCH: 495641 (LATER VERSION)
SEARCH: 495439 (NOT THE SAME UNIT AS THIS) |

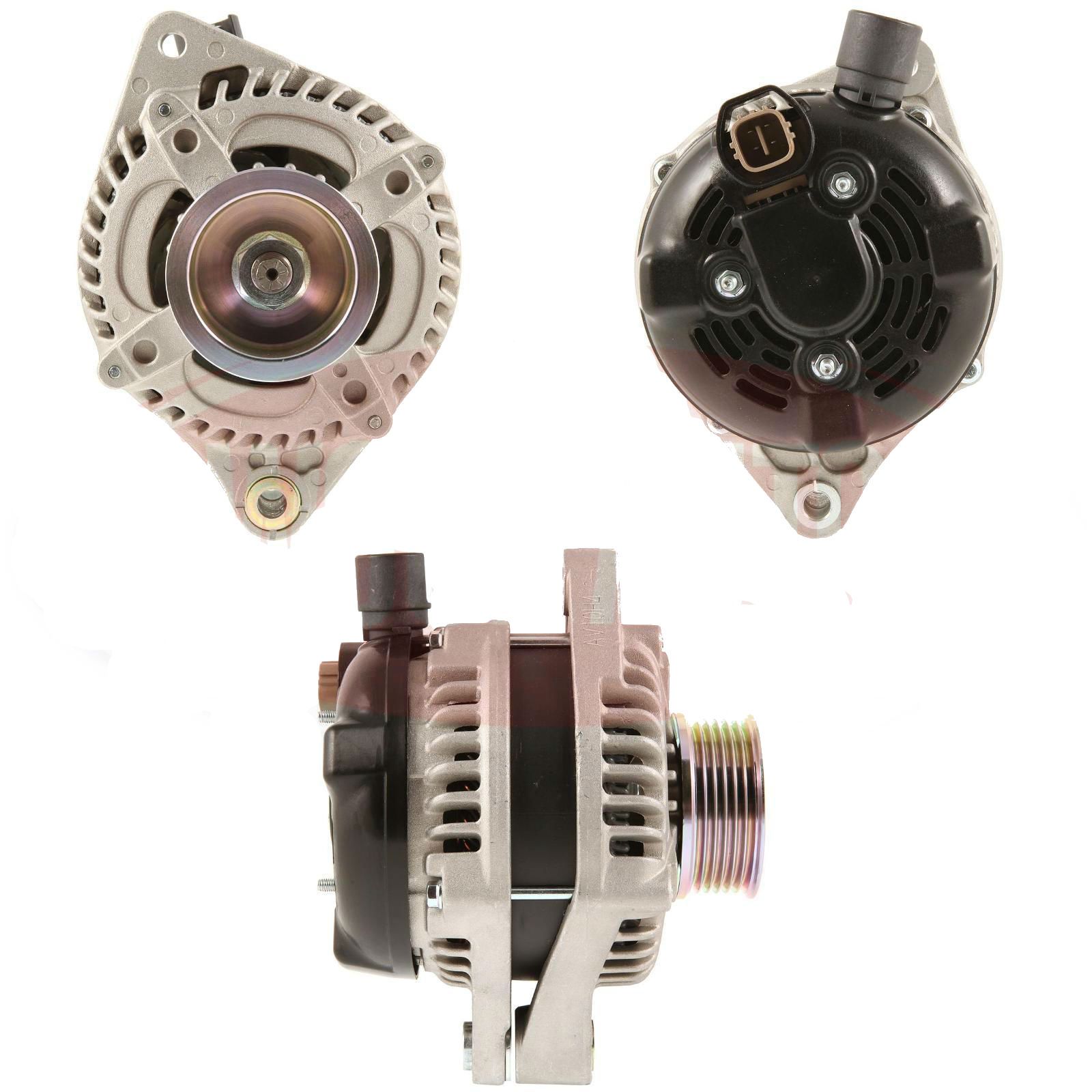

| Detailed | This Unit Was First Believed to Be the Same as the Earlier Used 13918 (104210-3090 1 2) But This is Not the Case as the DE Frame Mounting Plug Position and Battery Terminal are Different. This Unit a Thinner Top Ear Than the 13918 (Here at 11:30 or So) Has a Plastic Insulator Around the Battery Post (Sticking Out the Side at 11:30) and Has a 4-Pin Plug (C-FR-IG-L) at 10:00 on the Rear Also Protruding But With the Rear Cover Formed Around It. The 11150 Used on Other Honda Models Turns Out to Be the Same as the 11099 and Can Be Superseeded to This if Desired. It Has Also Been Noted That the Dealers are Selling the 11151 in Place of the 11099 (Reported 12/2007). |
| AND0339 | ARROWHEAD |
| 11099 | LESTER |
| 290-5083 | PIC |
| 31100-RDJ-A01 | ACURA |
| CSC10 | ACURA |
| 11099 | BBB |
| 11099 | BBB NEW |
| 186-1021 | BECK ARNLEY |
| 186-1222 | BECK ARNLEY |
| 104210-3100 | DENSO |
| A-80032 | DIXIE |
| 10771 | EXCEL |
| Denso Hairpin | FAMILY |
| 213-9567 | NAPA POWER PREMIUM PLUS |
| A2918 | USA INDUSTRIES |
| 1-2970-01ND-3 | WAI |
| 1-2975-01ND | WAI (OLD) |
| 90-29-5681 | WILSON |
| 90-29-5681 | WILSON NEW |
| 12423 | WORLDWIDE |
| ACURA | Auto and Light Truck | MDX | 2003 | 3.5L |
| ACURA | Auto and Light Truck | MDX | 2004 | 3.5L |
| ACURA | Auto and Light Truck | TL | 2004 | 3.2L |
| BRG0005 | ND949100-2250 | BEARING - ROLLER |
| BRG0014 | ND949100-2790 | BEARING - ROLLER |
| AND7501 | ND021660-0390 | BRUSH - ALTERNATOR |
| AND1308 | | BRUSH HOLDER - ALTERNATOR |
| AND1040 | | COVER - RECTIFIER |
| AND1641 | | INSULATOR - ALT. B+ STUD |
| | | PLUG CODE |
| AND1239 | ND021580-5891 | RECTIFIER |
| AND6142 | | REGULATOR |
| | ND021200-8160 | ROTOR |
| AND4030 | ND021100-4940 | STATOR |
| AND9209 | | TEST LEAD |
