| Unit Type | Starter |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Teeth | 11 |
| Manufacturer | DELCO |
| Starter Type | DD |
| Brief | TRUCK &
INDUSTRIAL APPLICATIONS
ADDL INFO: DELCO 40MT LEFT HAND MOUNT 5/8 MTG. HOLES
ADDL INFO: 481094 481095 481096 481097481100 481101 481102 481103 INTERCHANGE
SEARCH: 481100 (RIGHT HAND MOUNT) |

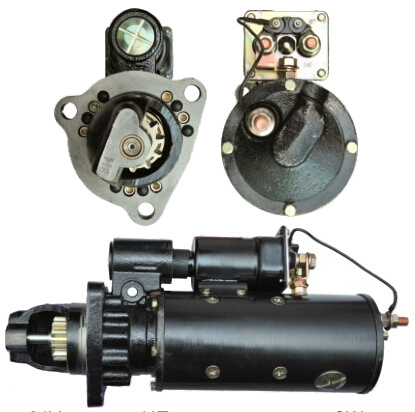

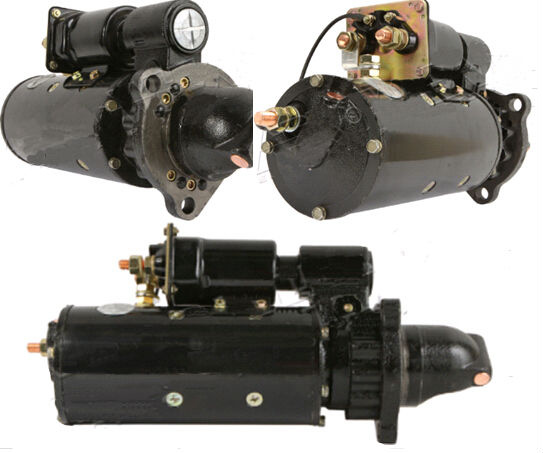

| Detailed | This is a 12-Volt Delco 40MT Using DE Housing #1970455 (Others), an 11-Tooth Drive (Accurate #4-486), and Lester Armature #1866. The 6243 is the Same Unit, But With Overcrank Protection. The 3978 is the Same Unit, Except Using a Solenoid With Reversed Terminals. The 3745 is the 24 Volt Version of the 3974. |
| SDR0004 | ARROWHEAD |
| IS1178 | ARROWHEAD (OEM) |
| 1400-0180 | ATLANTIC |
| 3974 | LESTER |
| 142-101B | PIC |
| 510-039 | BARSANCO |
| 3974 | BBB HD |
| 112089 | CARGO |
| 1114074 | DELCO |
| 1114076 | DELCO |
| 1114091 | DELCO |
| 1114098 | DELCO |
| 1114130 | DELCO |
| 1114143 | DELCO |
| 1114145 | DELCO |
| 1114147 | DELCO |
| 1114150 | DELCO |
| 1114164 | DELCO |
| 1114170 | DELCO |
| 1114188 | DELCO |
| 1114193 | DELCO |
| 1114700 | DELCO |
| 1114720 | DELCO |
| S-1107 | DIXIE |
| 201-40101 | DIXIE NEW |
| 2903 | EXCEL |
| 40MT | FAMILY |
| S3974 | IAT |
| 410-12050R | J & N |
| 410-12054R | J & N |
| 3763 | LESTER (OLD) |
| 3938 | LESTER (OLD) |
| 3939 | LESTER (OLD) |
| 3962 | LESTER (OLD) |
| 4728 | LESTER (OLD) |
| 4736 | LESTER (OLD) |
| 4955 | LESTER (OLD) |
| IS 1178 | LETRIKA (ISKRA) AFTERMARKET |
| LRS01091 | LUCAS ELECTRICAL EUROPE |
| 3096M | MES MOTORCYCLE & MARINE |
| 57-1260 | MINNPAR |
| X73974 | MPA HD |
| X73974N | MPA NEW HD |
| 73974 | NAPA HD |
| 73974N | NAPA NEW HD |
| STR-4200 | NSA |
| 23356A | RCP |
| 3974 | USA INDUSTRIES |
| 50-108 | WAI |
| 50-108-1 | WAI SALES |
| 91-01-3701 | WILSON |
| 91-01-3701 | WILSON HD |
| 61401 | WORLDWIDE |
| Unit Type | Starter |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Teeth | 12 |
| Manufacturer | DELCO |
| Starter Type | DD |
| Brief | TRUCK AND INDUSTRIAL APPLICATIONS
ADDL INFO: DELCO 40MT RIGHT HAND MOUNT 5/8 MTG HOLES
SEARCH: 481142 481143 (SAME UNIT)
SEARCH: 481135 (LEFT HAND MOUNT)
SEARCH: 481140 481144 (w/OCP)
SEARCH: 481146 481148 (REVERSED TERMINALS) |
| Detailed | This is the Same as 481142 Except This Unit Uses Solenoid #1119879 (Instead of #1115556). |
| SDR0005 | ARROWHEAD |
| IS1178 | ARROWHEAD (OEM) |
| 1100-0131 | ATLANTIC |
| 1200-0112 | ATLANTIC |
| 1700-0109 | ATLANTIC |
| 3339 | LESTER |
| 142-122B | PIC |
| 510-039 | BARSANCO |
| 610-18572 | BARSANCO |
| 3339 | BBB HD |
| BSX1440030 | BOWERS |
| 110436 | CARGO |
| 112089 | CARGO |
| 1114109 | DELCO |
| 1114129 | DELCO |
| 1114138 | DELCO |
| 1114149 | DELCO |
| 1114152 | DELCO |
| 1114158 | DELCO |
| 1114162 | DELCO |
| 1114174 | DELCO |
| 1114705 | DELCO |
| 1114708 | DELCO |
| 1114724 | DELCO |
| 1114824 | DELCO |
| S-1132 | DIXIE |
| 201-40102 | DIXIE NEW |
| 40MT | FAMILY |
| 410-12050R | J & N |
| 410-12053R | J & N |
| 4782 | LESTER (OLD) |
| 4976 | LESTER (OLD) |
| IS 1178 | LETRIKA (ISKRA) AFTERMARKET |
| LRS01741 | LUCAS ELECTRICAL EUROPE |
| 6606M | MES MOTORCYCLE & MARINE |
| 57-1261 | MINNPAR |
| X73339 | MPA HD |
| X73339N | MPA NEW HD |
| 73339 | NAPA HD |
| 73339N | NAPA NEW HD |
| STR-4221 | NSA |
| 23352A | RCP |
| 3339 | USA INDUSTRIES |
| 50-100-1 | WAI SALES |
| 20-7100991 | WHITE |
| 30-3212637 | WHITE |
| 30-3212645 | WHITE |
| 91-01-3702 | WILSON |
| 91-01-3702 | WILSON HD |
| STR20017 | WOOD AUTO |
| 61402 | WORLDWIDE |
| Unit Type | Starter |
| Part Type | UNIT |
| Voltage | 24 |
| Rotation | CW |
| Teeth | 11 |
| Manufacturer | DELCO |
| Starter Type | DD |
| Brief | DELCO 40MT STARTER LEFT HAND MOUNT 5/8 MTG HOLES
SEARCH: 481182 (RIGHT HAND MOUNT) |
| Detailed | This is a 24-Volt Delco 40MT Starter, Using DE Housing #1970455 (Others), an 11-Tooth Drive (Accurate #4-486), and Lester Armature #2023. The 6260 is the Same Unit, But With a Solenoid Using Reversed Terminals. The 3757 is a 32 Volt Version of the 3745, While the 3974 is the 12 Volt Version (Using the Same DE Housing and Drive). |
| SDR0017 | ARROWHEAD |
| IS1183 | ARROWHEAD (OEM) |
| 1700-0152 | ATLANTIC |
| 3745 | LESTER |
| 142-141 | PIC |
| CM-4048 | ACE |
| 510-6370 | BARSANCO |
| 3745 | BBB HD |
| BSO7188 | BOWERS |
| 111000 | CARGO |
| 307822R92 | CASE |
| 313979R92 | CASE |
| 317941R92 | CASE |
| 439677R91 | CASE |
| 627589C91 | CASE |
| 690400C91 | CASE |
| 755496C91 | CASE |
| 989969R91 | CASE |
| 0R5209 | CATERPILLAR |
| 3T2646 | CATERPILLAR |
| 3T2649 | CATERPILLAR |
| 3T2650 | CATERPILLAR |
| 3T3152 | CATERPILLAR |
| 3T3153 | CATERPILLAR |
| 4N8118 | CATERPILLAR |
| 4N957 | CATERPILLAR |
| 5L2537 | CATERPILLAR |
| 5L2637 | CATERPILLAR |
| 5L537 | CATERPILLAR |
| 5L637 | CATERPILLAR |
| 6N3122 | CATERPILLAR |
| 7L8797 | CATERPILLAR |
| 7T0794 | CATERPILLAR |
| 7T0800 | CATERPILLAR |
| 7T0801 | CATERPILLAR |
| 7T0806 | CATERPILLAR |
| 8C3644 | CATERPILLAR |
| 8C3649 | CATERPILLAR |
| 8H1813 | CATERPILLAR |
| 9G5584 | CATERPILLAR |
| 9G5585 | CATERPILLAR |
| 9L6691 | CATERPILLAR |
| 9N0435 | CATERPILLAR |
| 9N0453 | CATERPILLAR |
| 135162 | CUMMINS |
| 3021036 | CUMMINS |
| 3603862RX | CUMMINS |
| 706620 | CUMMINS |
| 10451047 | DELCO |
| 10461047 | DELCO |
| 10461179 | DELCO |
| 1114756 | DELCO |
| 1114762 | DELCO |
| 1114842 | DELCO |
| 1114846 | DELCO |
| 1114848 | DELCO |
| 1114849 | DELCO |
| 1114850 | DELCO |
| 1114853 | DELCO |
| 1114854 | DELCO |
| 1114855 | DELCO |
| 1114903 | DELCO |
| 1114935 | DELCO |
| 1114947 | DELCO |
| 1114950 | DELCO |
| 1114951 | DELCO |
| 1114963 | DELCO |
| 1114981 | DELCO |
| 1114987 | DELCO |
| 1993700 | DELCO |
| DRZ5104 | DELCO REMAN (EUROPE) |
| R0461179 | DETROIT DIESEL |
| S-1083 | DIXIE |
| 201-40202 | DIXIE NEW |
| 2915 | EXCEL |
| 40MT | FAMILY |
| 70620382 | FIAT ALLIS |
| 70622235 | FIAT ALLIS |
| 73061273 | FIAT ALLIS |
| 73069398 | FIAT ALLIS |
| 73116947 | FIAT ALLIS |
| 73117237 | FIAT ALLIS |
| 73130194 | FIAT ALLIS |
| 73130195 | FIAT ALLIS |
| 73130625 | FIAT ALLIS |
| C4TF-11000-A | FORD |
| C4TZ-11002-A | FORD |
| 307822R92 | INTL HARVESTER |
| 313979R92 | INTL HARVESTER |
| 317941R92 | INTL HARVESTER |
| 439677R91 | INTL HARVESTER |
| 627589C91 | INTL HARVESTER |
| 690400C91 | INTL HARVESTER |
| 755496C91 | INTL HARVESTER |
| 989969R91 | INTL HARVESTER |
| 410-12049R | J & N |
| 3372 | LESTER (OLD) |
| 6533 | LESTER (OLD) |
| IS 1183 | LETRIKA (ISKRA) AFTERMARKET |
| LRS01837 | LUCAS ELECTRICAL EUROPE |
| 8MJ176 | MACK |
| 57-1264 | MINNPAR |
| X73745 | MPA HD |
| X73745N | MPA NEW HD |
| 46-4199 | NAPA |
| 46-4598 | NAPA |
| 73745 | NAPA HD |
| 73745N | NAPA NEW HD |
| STR-4302 | NSA |
| 23359A | RCP |
| 3745 | USA INDUSTRIES |
| 50-104-1 | WAI SALES |
| V1114243 | WHITE |
| 91-01-3700 | WILSON |
| 91-01-3700 | WILSON HD |
| STR20013 | WOOD AUTO |
| STR4302 | WOOD AUTO |
| 61400 | WORLDWIDE |
We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.
Production Equipment:
The armature and stator are produced by automatic equipment.
Inspection equipment:
We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.
Armature, stator, solenoid switch and the starter assembly are all 100% inspected.
Whole set laboratory equipment:
We have whole set laboratory equipment for the starter performance test.
Market share:
We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.
Experiences:
Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.
9. After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
Competitive price ------
Over 90% parts produced by our own factory
Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
1 year warranty
100% brand new product
Major product family:
Alt: CS, AD, ND, Ford, SI, Leece Neville, Marelli, Bosch, Valeo, Mitsubishi, Lucas, etc.
Str: Ford PMGR, PG260D/G/L/F1/F2/M, Bosch, Valeo, Mitsubishi, etc.
Market (%):
North America 60%; Middle East 15%; Europe 15%; Local 10%.
We are specialized in Auto alternator and starter motor since 2000. Quality first, price second. Usually, our alternator and starter motor can match with each other smoothly in the same model Vehicle.
Our company boasts a high-quality management team from top to bottom for the purpose of an efficient operation system. We control every part and every working procedure strictly because we regard product quality as a basis of our corporate development. Based on the original ISO9001: 2000 International Quality Management System, all links of our production and management are strictly guided by the standard of ISO/TS16949
Ningbo Hi-Tech Altering Motor Co., Ltd.
Factory established 1996.
Specialized in Heavy Duty diesel alternator and starter motor.
Warranty is one year after operation.
Delivery is 45 days after confirming the order.
NingBo Hi-Tech Altering Tech. Co., Ltd. Locates in Ningbo Hi-tech Zone, east of China and we are having specialized in alternator and starter motor industry since 2000. We have a full set of advanced equipments for production, inspection and testing. Now its annual production capacity is one million auto alternators and half a million auto starters. The company has a powerful R&D capability, which ensures it lead position of the manufacturing profession in the speed & quality of new products development.
The main products of ALTERING currently have over 50 series ( over 500 part numbers ) of auto alternators and auto starters, such as, PMGR, LUCAS, MARELLI, BOSCH, VALEO and so on, which are sold to America, Europe, Middle East, Southeast Asia, etc...We turnover ranks high in the manufacturing profession. The company is making efforts to expand business of aftermarket and OEM as well. Up to now, We have been a supplier of several domestic vehicle manufacturers.
We pursues the corporate philosophy of "quality first, prestige first" all the time, and keeps developing more and more new products. We welcome peoples of all circles to visit or call for business cooperation.
