| Unit Type | Starter |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Teeth | 10 |
| Manufacturer | DELCO |
| Starter Type | DD |
| Brief | GMC, FREIGHTLINER, NAVISTAR WITH CAT ENGINES 1990-99
ADDL INFO: DELCO 37MT STARTER
ADDL INFO: .42 (7/16 INCH) MOUNTING HOLES
ADDL INFO: 1/2 INCH BATTERY POST
ADDL INFO: HAS GROUND POST ON BACK CAP
SEARCH: 480811 (SOLENOID HAS 4th TERMINAL - DUMMY)
SEARCH: 480809 (CE STUD ON OPPOSITE SIDE)
SEARCH: 480811 (DIFF. SOLENOID)
SEARCH: 480809 (CE STUD ON OPPOSITE SIDE)
SEARCH: 480912 (OVERCRANK PROTECTION)
SEARCH: 485411 (DENSO REPLACEMENT) |

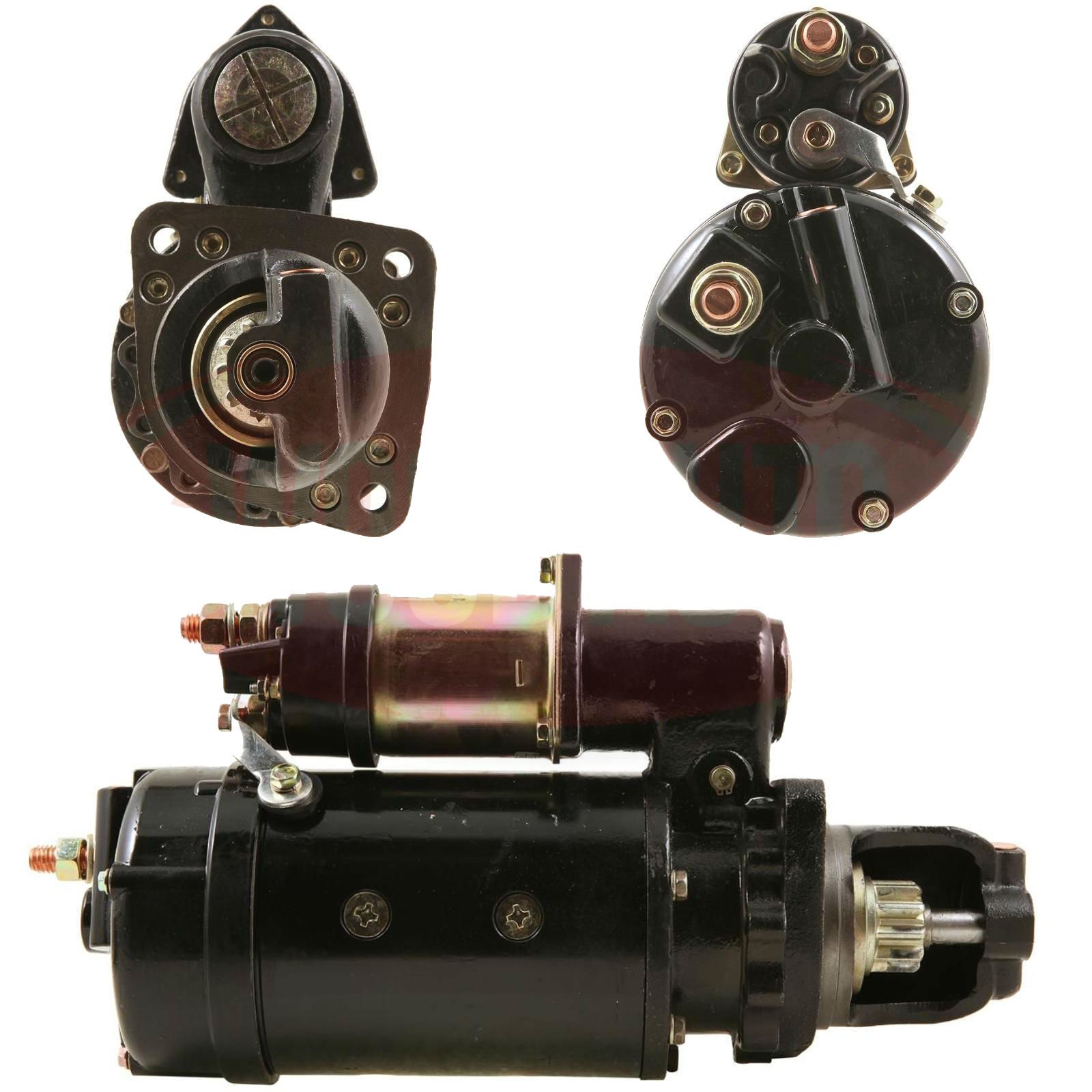

| Detailed | This is a Delco 37MT (12V - 308 Degree - CW) Starter for Chevrolet / GMC H.D. Trucks Using DE Housing #10499864, a 10-T Drive, a Rear CE Cover Mounted Junction Stud (Not Insulated Like Other 37MT'
s Are), No Thermostat, and a Solenoid with a 1/2"
Battery Stud, and No Ground Stud. The 6523 is the Same Unit, But Using a Jump Start Protection Solenoid. The 6545 is the Same Unit, But with Overcrank Protection. The 6905 is the Same Basic Unit, But with the Ground Stud on Opposite Side the CE Cover. |
| SDR0055 | ARROWHEAD |
| 6505 | LESTER |
| 141-306 | PIC |
| 323-879 | AC DELCO |
| 013963 | ANDRE NIERMANN |
| 510-6505 | BARSANCO |
| 6505 | BBB HD |
| 113126 | CARGO |
| 10461081 | DELCO |
| 10461098 | DELCO |
| 10478806 | DELCO |
| 1993963 | DELCO |
| TS-1607 | DIXIE |
| 201-37115 | DIXIE NEW |
| 2900 | EXCEL |
| 37MT | FAMILY |
| 410-12293 | J & N |
| 410-12293R | J & N |
| 410-12441 | J & N |
| 410-12192 | J & N (OLD) |
| 410-12192R | J & N (OLD) |
| 57-2421 | MINNPAR |
| X76505 | MPA HD |
| X76505N | MPA NEW HD |
| 76505 | NAPA HD |
| 76505N | NAPA NEW HD |
| 23536A | RCP |
| 6505 | USA INDUSTRIES |
| 2-1583-DR | WAI |
| 50-194 | WAI |
| 50-194-1 | WAI |
| 6505N-PT | WAI |
| 91-01-4307 | WILSON |
| 91-01-4307 | WILSON HD |
| 63117 | WORLDWIDE |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1993 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1993 | Caterpillar 3126 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1994 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1994 | Caterpillar 3126 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1995 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1995 | Caterpillar 3126 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1996 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1996 | Caterpillar 3126 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1997 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1997 | Caterpillar 3126 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1998 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | B7 | 1998 | Caterpillar 3126 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1990 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1991 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1992 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1993 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1994 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1995 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1996 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1997 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1998 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 1999 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C50 | 2000 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C5500 Kodiak / Topkick | 1990 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C5500 Kodiak / Topkick | 1991 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C5500 Kodiak / Topkick | 1992 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C5500 Kodiak / Topkick | 1993 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C5500 Kodiak / Topkick | 1994 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C5500 Kodiak / Topkick | 1995 | Caterpillar 3116 |
| CHEVROLET / GMC | Medium & Heavy-Duty Trucks | C5500 Kodiak / Topkick | 1996 | Caterpillar 3116 |
| SDR3009 | | ARMATURE - STARTER |
| SDR7523 | R-135 | BRUSH - STARTER |
| SDR1319 | | BRUSH HOLDER (EMPTY) - STR. |
| SDR1509 | | BRUSH SPRING - STARTER |
| SDR7143 | | BUSHING - D.E. AND / OR C.E. |
| SDR7162 | | BUSHING - LEVER HSG |
| SDR1028 | | CASTING - C.E. |
| SDR2407 | | CASTING - C.S. |
| SDR2121 | | CASTING - D.E. |
| HDW8915 | | CONNECTOR - FIELD COIL |
| SDR5014 | ZN0755 | DRIVE |
| SDR4536 | | FIELD COIL - STARTERS |
| SDR9203 | | O-RING - STARTER |
| HDW9115 | | O-RING - STARTER |
| HDW9114 | | O-RING - STARTER |
| HDW9120 | | O-RING - STARTER |
| HDW9124 | | O-RING - STARTER |
| SDR9202 | | O-RING - STARTER |
| SDR6457 | | PLUNGER ASSY. |
| | | POLE SHOE |
| HDW2810 | | POST - GROUND |
| HDW9125 | | RETAINING RING - DRIVE |
| | | SCREW - C.E. |
| HDW0403 | | SCREW - MISC. STARTER |
| HDW0608 | | SCREW - POLE SHOE |
| HDW0408 | | SCREW - SOLENOID MTG. |
| HDW0423 | | SCREW - SOLENOID MTG. |
| SDR2615 | | SEAL - C.S. HOUSING |
| SDR2513 | | SHIFT LEVER |
| HDW8006 | | SHIFT LEVER PIN |
| SDR6039 | 10A-D931W | SOLENOID - STARTER |
| SDR6613 | | SOLENOID BOOT |
| HDW9209 | | STOP COLLAR - DRIVE |
| HDW6510 | | WASHER - BRAKE |
| HDW3702 | | WASHER - SPACER (METAL) |
