12psdw-S Diesel Fuel Injection Pump Test Bench (Flow Computer Display)

Name: 12psdw-S Diesel Fuel Injection Pump Test Bench (Flow Computer Display)
Brand: ibuyautoparts.com
SKU: 697861635
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	US $ 8000-11000/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

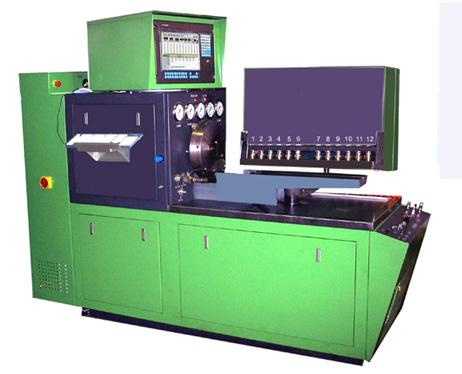

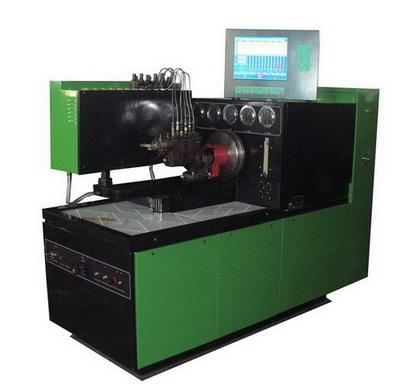

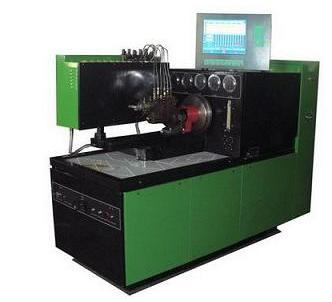

12PSDW-S Test Bench, 12 cylinders, Electronic Fuel Delivery Measuring System, Controlled and measured by Computer in real time.
Power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw etc.

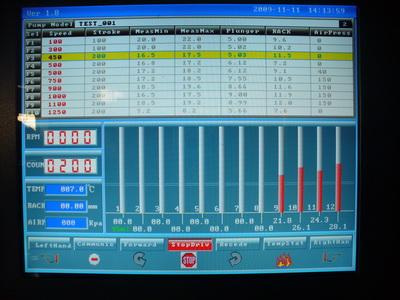

12PSDW-S Electronic Fuel Delivery Measuring System Test Bench---continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems.

The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductively of the measured values.

Main Function:
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump.
7. Testing of the electromagnetic valve of distributor pump. (12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke (on request)
13.oil lubricate (on request)
14. Foced cooler (on request)

Technical characteristic

Adjustable cylinders numbers

Out power(Kw)

RPM

Rpm pre-set

Temperature control system

Positive pressure system

7.5 11
15 18.5

0-4000

√

Air supply	DC power supply	Internal pressure of VE pump	Oil return of VE pump	Travel of tooth bar	Advanced angle	Capability with pump type
√	√	√	√	(On request)	√ (On request)	All in- line and rotary pump

Prod Model:	12PSDW-S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Hubei, China (Mainland)
Brand Name:	12psdw
Model Number:	12psdw-S
Power:	Electronic
Usage:	Auto Testing Machine
Pump Test Bench:	Fuel Inejction Pump Tester
Color:	Green
Display Controller:	by Internet
Certification:	ISO
Update Method:	by Hard Disk

Our company was established in 1978 as one of the oldest Chinese agricultural and construction equipment supplier in the overseas market and ISO9001 approved. Annual turn over is over 100 million US Dollars per year.

We supply 18HP-280HP tractor and tractor implements; construction equipment including LIUGONG wheel loader, XCMG wheel loader, truck crane, motor grader, skid steer loader, HC forklift, SD bulldozer, backhoe loader, reach stacker, etc. and its spare parts.

All products are not only well sold in China, but also to Southeast Asia, Middle East, Australia, Africa, Europe and America. In order to meet the requirement of international market, FOTMA will strive to upgrade our products and keep on innovation so as to provide perfect products and best service to the customers both from domestic and abroad.
