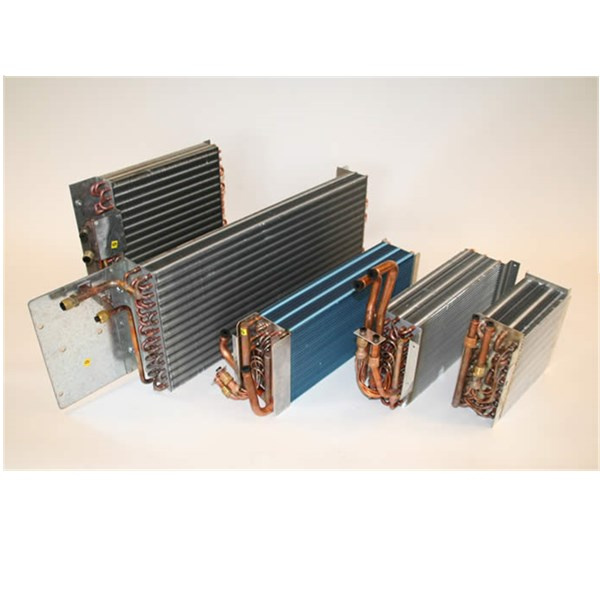

Specification
1. Tube O. D.: 12.75mm.
2. Materials: Copper tube copper fin;
3. This product welded depending on the material and application.
4. Heat exchanger outline size: Can be manufactured according to clients' requirements.
Condenser features:
1. The heat exchangers have a wide rang of pplications such as: Window, Split and
2. The subcooler integrated with the condenser further cools the liquid refrigerant,
Resulting in increased refrigerant enthalpy and improved evaporator cooling
Performance
3. Thinner tubes and fins improve the heat exchange rate
4. Smaller header tank and lower side plate height increase the effective heat
Exchange area of the core part that exchanges heat, without increasing the installation space
5. The row material of excellence: We source only the best quality raw material from
Aroud the world, , to manufacture heat exchangers that are of globally acceptable
Standards;
6. Plain copper pipe of 7mm, 7.94mm, 9.52mm and 12.75mm diameter.
7. Aluminum foil in blu color with hydrophilic and bio(Health) properties.
| ITEM | condenser Type | Operation medium | Operation pressure
( MPa ) | Application |
| 1 | Φ16/Φ9.52/Φ12.7
Copper tube with aluminium fin | Cold/hot water | ≤1.6 | Used for combined air handling unit, fan coil etc air conditioning devices |
| 2 | Φ18/Φ20
Steel pipe winding with steel sheet | Steam | ≤0.2 | Used for combined air handling unit, fan coil etc air conditioning devices |
| 3 | Φ16/Φ9.52/Φ12.7
Copper tube with aluminium fin | Brine | ≤1.6 | Used for heat transfer in cold storage and all kinds of low temperature systems |
| 4 | Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin | Ethylene glycol | ≤1.6 | Used of energy recovery and low temperature system devices |
| 5 | Φ16
Copper tube with aluminium fin | Ice mud | ≤1.6 | Used for dry operation condition, fresh air dehumidification etc systems |
| 6 | Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin | R22 | ≤1.9 | Used for industry and commerce air conditioning system |
| 7 | Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin | R407C | ≤1.9 | Used for industry and commerce air conditioning system |
| 8 | Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin | R134a | ≤3.1 | Used for vehicle and vessel etc transportation devices |
For more information, please feel free to contact me:Ms. Sara Jiao
-------------------------------------------------------------------------------
Sales of Shanghai Shenglin M&E Technology Co.,Ltd
Tel: +86 21 35324169 ext 211
Fax: +86 21 35324166
Mob: +86 18838155372
Web: www.shenglintec.com
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1º C and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
