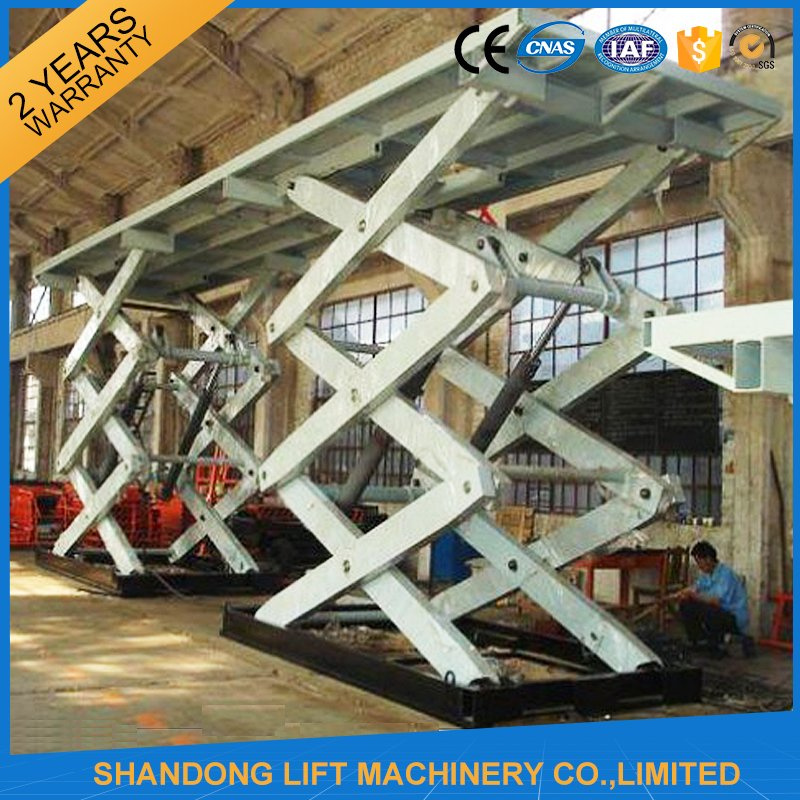

10T Heavy Duty Stationary Hydraulic Scissor Lift Table for Car
Application:
-The Hydraulic scissor car lift can be used to lift car with different levels, suitable for car parking between stairs, from basement to first floor, to second floor, or to third floor.
-Operation is easy. There are 2 sets control system installed on the Hydraulic scissor car lift , 1 control box below, and 1 hand controller on safety rail that can be operated on upper platform.
Advantages:
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection locking device to avoid falling for the Hydraulic scissor car lift.
The models we supplied for clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The Hydraulic scissor car lift can be customized as your detailed size. |
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps car parking lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the car parking lift are passed 1.2 times loading test before leaving factory.
Configuration:
1) Platform Material: rectangular tube +checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform

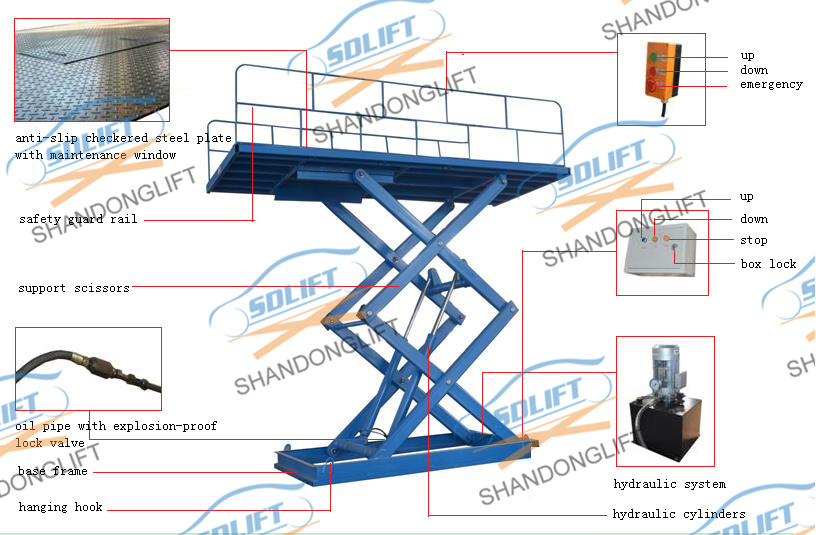

Parts picture:
Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.
Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation. The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.
We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We sincerely welcome each potential customer to visit our factory!
