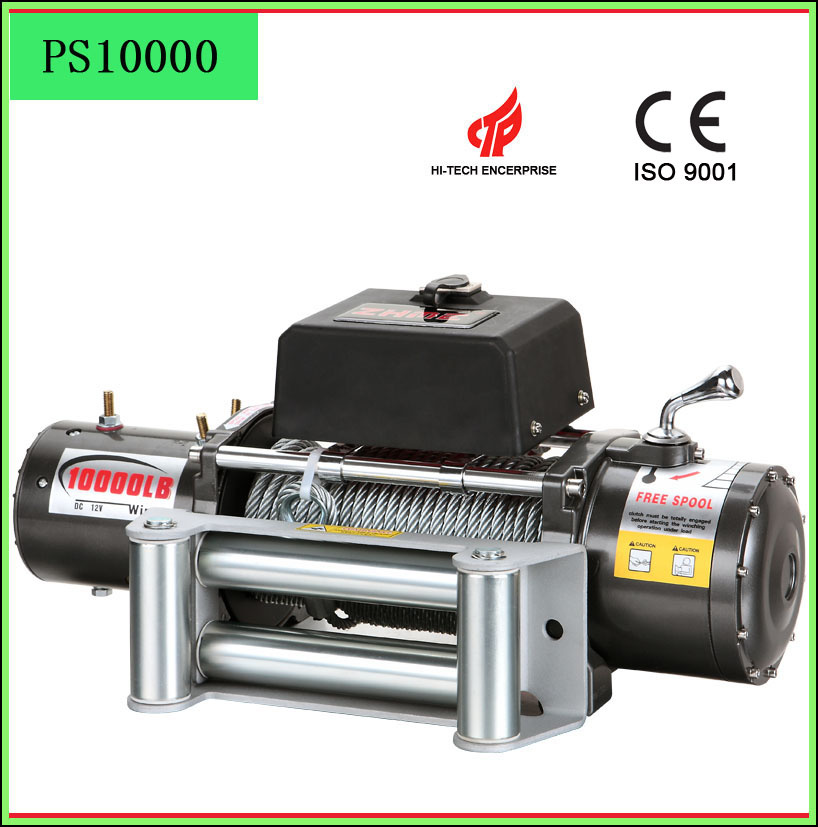

10000lbs Heavy Duty Cable Electric Winch

Name: 10000lbs Heavy Duty Cable Electric Winch
Brand: ibuyautoparts.com
SKU: 688911491
Availability: InStock
Rating: 4.9 (113 reviews)

Price:	US $ 160-180/Piece
Min Order:	15/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

10000LBS HEAVY DUTY CABLE ELECTRIC WINCH

1. Lower noise/Reliable & stable performance
2. One-time die-casting/Firm structure/Steel 3-stage planetary gears/High-efficiency/lower noise/Persistent pull line/High quality grease/Enable winch operation temperature under 40

Specifications
Rated line pull: 10000 Lbs (4536kgs) single line.
Motor: Series wound 5.5 HP /4.1kw 12V DC 7.4 HP /5.4kw 24V DC
Gear Train: 3 stage planetary
Gear ratio: 265: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Battery: Recommended 650 CCA minimum for winching
Battery: 25mm2, 72(1.83m)
Fairlead: 4-way Roller fairlead
Wire rope: 5/16"× 92'( 8.3mm × 28m)
Drum size: 2.5"× 8.8"( 63.5mm× 224mm)
Dimensions: 21.5"× 6.3"× 8.6"( 548mm× 160mm× 218mm)
Mounting bolt pattern: 10"× 4.5"(254mm× 114.3mm)
N. W: 38 kg (84Lbs)
Packing: 620mmx360mmx260mm (420PCS per 20" container)

Line speed and motor current (first layer)
line pull	Lbs	0	2000	4000	6000	8000	10000
line pull	Kgs	0	907	1814	2722	3629	4536
Line speed	FPM	32.2	16	11.9	9.79	8.01	5.9
Line speed	MPM	6.8	4.88	3.63	2.98	2.44	1.8
Motor current	Amps	80	130	180	230	290	350
Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	10000	8800	7800	6600
Rated line pull per layer	Kgs	4536	3990	3538	2994
Cable capacity per layer	Ft.	19.6	42	72	82
Cable capacity per layer	M	6	13	22	25

Prod Model:	PS10000
Delivery Detail:	30days After Receipt of 30% Total Amount as Deposi
Type:	Electric Winch
Power Type:	Series Motor DC
Applicable Environment:	Mountain Road
Certification:	CE
Pull Direction:	4-Way
Brand:	Zhme

Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
