Autel MaxiScope MP408 work with pc or Autel maxisys tool
Featuring the user-friendly UI design combined with the unrivalled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Feature and Functions:
Features one-click auto setup of voltage scale and time base
Works on all makes and models of modern vehicles
Compatible with LIN, CAN and FlexRay data bus standards
Reads and displays electrical signals in high resolution waveforms
Allows manual editing of measurement parameter display
Records and plays back waveform data
Features color coded 4-channel control panel
Intuitive UI design features easy trigger point adjustment and real time scale info display
Direct power supply through USB connection
Free online software update through the Internet
Portable design with strong housing and protective rubber boot
Autel MaxiScope MS408 Specifications:
Vertical resolution |
12 bits |
Channels |
4 |
Bandwidth |
20MHz |
Accuracy |
1% |
Sensitivity |
10mV/div to 20V/div |
PC Interface |
USB 2.0 - Cable supplied |
Power Requirements |
Powered from USB port |
Input Ranges (full scale) |
±v50mV to ±100V in 11 ranges |
Input Impedance |
1MΩ in parallel with 22pF |
Input Type |
Single-ended, BNC connector |
Input Coupling |
Software selectable AC/DC |
Overload Protection |
±200V on single input |
Buffer Memory |
32M samples shared among active channels |
Waveform Buffer |
Up to 1000 waveforms |
Timebase Ranges |
100ns/div to 1000s/div |
Operating Temperature Range |
0°C to 50°C (15°C to 40°C for quoted accuracy) |
Storage Temperature Range |
-20°C to +60°C |
Storage Humidity Range |
5% to 95%RH, Non-condensing |
Dimensions |
190X115X38mm |
Weight |
< 0.5kg |
Maximum Sampling Rate (Single Shot) |
1 or 2 channels in use |
80MS/s |
3 or 4 channels in use |
20MS/s |

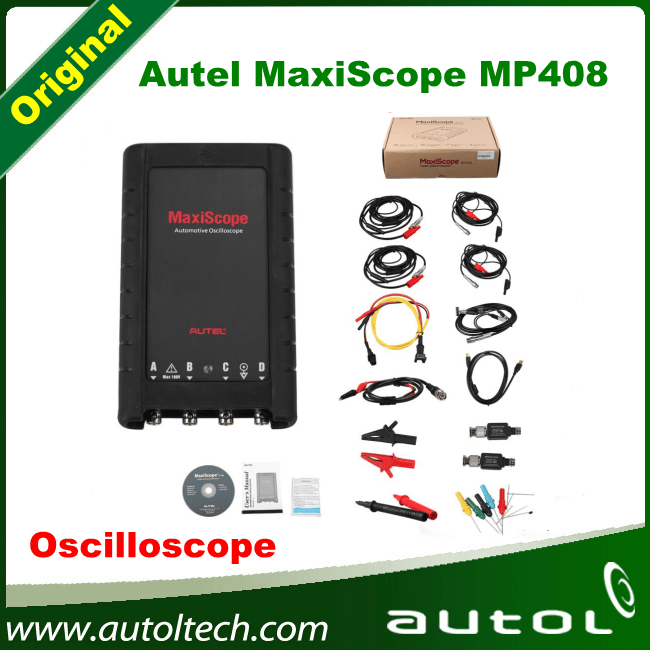

Autel MaxiScope MS408 Package Including:
1pcs x Autel MaxiScope MP408 Interface
1pcs x Compact Disc (CD)
1pcs x 1.5m USB Cable
4pcs x 3m (10ft) Screened Test Leads
1pcs x Secondary Ignition Pickup
1pcs x 2-pin Breakout Lead
2pcs x Attenuators 20:1
1pcs x Large Crocodile Clip Set
1pcs x Small Crocodile Clip Set
1pcs x Acupuncture Probe Set
1pcs x Multimeter Probes
