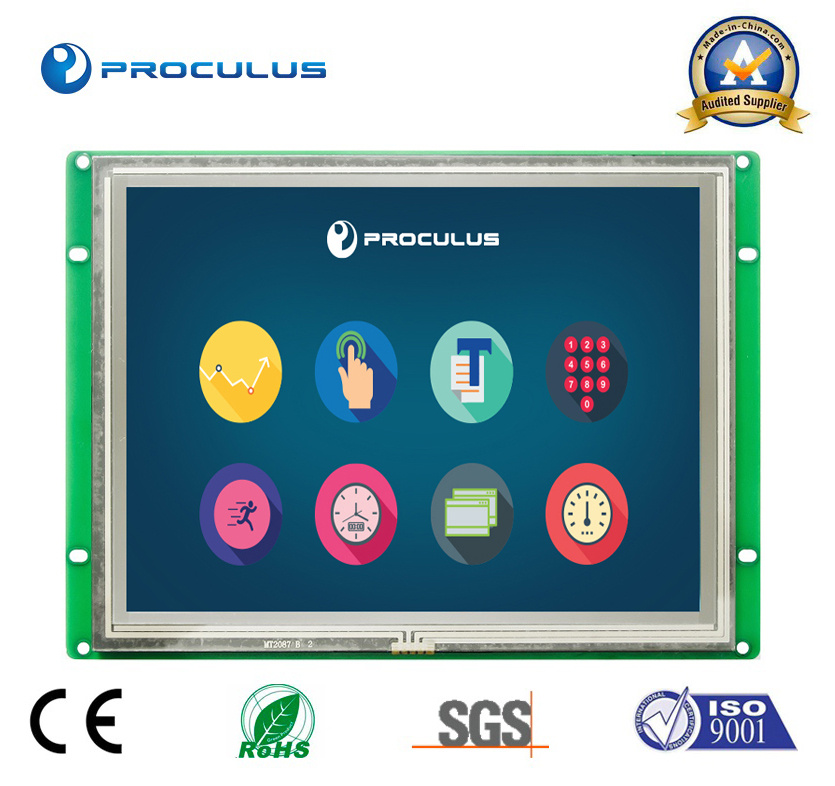

10.4 Inch 800*600 TFT LCM with RS232 for Auto Repair Equipment

Name: 10.4 Inch 800*600 TFT LCM with RS232 for Auto Repair Equipment
Brand: ibuyautoparts.com
SKU: 833413545
Availability: InStock
Rating: 4.5 (20 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Display

Item	Parameter	Description
Color	65K (65536) colors	16 bit color 5R6G5B
Visual Angle L/R/U/D	70°/70°/50°/60°
Resolution	800*600	90° rotated display (600*800)
Backlight /Lifecycle/Brightness	LED/20,000 HOURS/ 350 cd/m²
Working Temperature/ Storage Temperature	-20~+70ºC/-30~+80ºC
Static ESD	±15KV

Voltage & Current

Item	Conditions	Min	Typ	Max	Unit
Power Voltage	-	6	12	40	V
Operation Current	VIN = 12V, Backlight on	-	370	-	mA
	VIN = 24V, Backlight on	-	195	-	mA
	VIN = 12V, Backlight off	-	90	-	mA

Interface

Item	Conditions	Min	Typ	Max	Unit
Baudrate	Standard	1200	-	115200	bps
Interface	RS-232C
Data Format	1 byte for initial, 8 bytes for data, invalid bytes for checksum, 1 byte for end
Socket	SMD2.0-8P with lock catch

Peripherals

No.	Parameter	Description
1	Touch Screen	4-wire resistance touch screen: P80600V104I_T30
		4-wire capacitive touch screen: P80600V104I_P30
		No touch screen: P80600V104I_N30
2	Buzzer	YES
3	RTC	YES
4	USB	YES. For downloading offline or user data copy.	External board needed for online debugging
5	USB Mini	YES. For online debugging.
6	Audio	Support *.MP3 files. Theoretically 4096 file at maximum. Speaker power: 4Ω2W or 8Ω2W.
7	Keyboard	Support external row keyboard (8*8 maximum).
8	Memory	128M(support *.jpg files, maximum 65536 files theoretically), extended to 1G at maximum.

Prod Model:	P80600V104I_T30
Scale:	4:3
Voltage:	6-40V
Brightness:	350 Nits
Interface:	RS232
Resolution:	800*600
Communication Mode:	Serial Port
Development Method:	with GUIs software that picture embedded

Founded in the year of 2010, Proculus Technologies has been putting concentration on intelligent display solution with a kind of easy-to-go software UnicView AD which empowers user to have a more cost-effective and quicker access to finish the GUIs as well as communication with embedded system. Unlike other user interface technologies, the strength that we emphasize is visualization of interface design from low cost software and simplification of programming in project construction as well as easy-to-use in processing.

Proculus business range mainly expanded into hardware display introducing and production, and assorted software developments. Besides, Proculus Technologies accepts customization of display-related for control in embedded world as of that advantages to being on the project to assistance for machines in end field.

In further step, Proculus Technologies is going to move forward on smallest size display besides of 3.5'' inches to 18.5'' inches that we are working currently, based on serving for over 2000 end users in the industry. We will release out different options including software and hardware to resolve the obstacles that you met possibly in the course of products design in terms of controller/display part.

As an overall design-to-display touch screen solution provider, Proculus Technologies saved lots of troubles for users in terms of researching and developing on display part by providing an entire solution including professional software and stable plug-and-play hardware.
